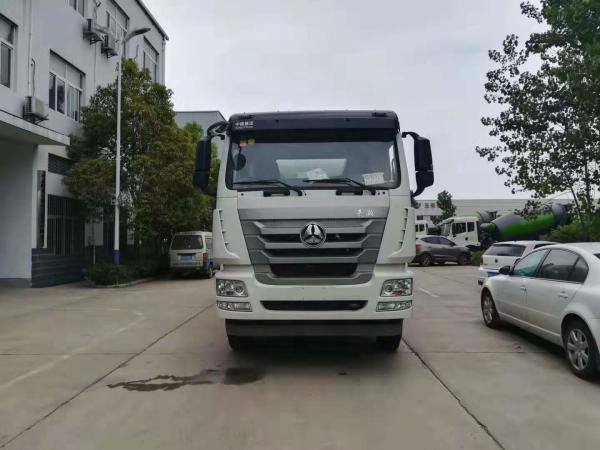

Concrete Truck 8*4 10m3 Mobile HOWO Concrete Mixer Truck Machine
For Construction Works
Description:
• Key Application
2cbm and the effective volume is 6cbm. The geometric volume 12.5cbm
and the effective volume is 8cbm; the geometric volume 15cbm, the
effective volume 10cbm. The geometric volume 18.5cbm, the effective
volume 12cbm.
Advantages
1. There are 2 type of volume of water tank, one is 200L and the
other is 400L.
2. The mixer body washing system consisits of the water tank, high
pressure air tube, water gun.

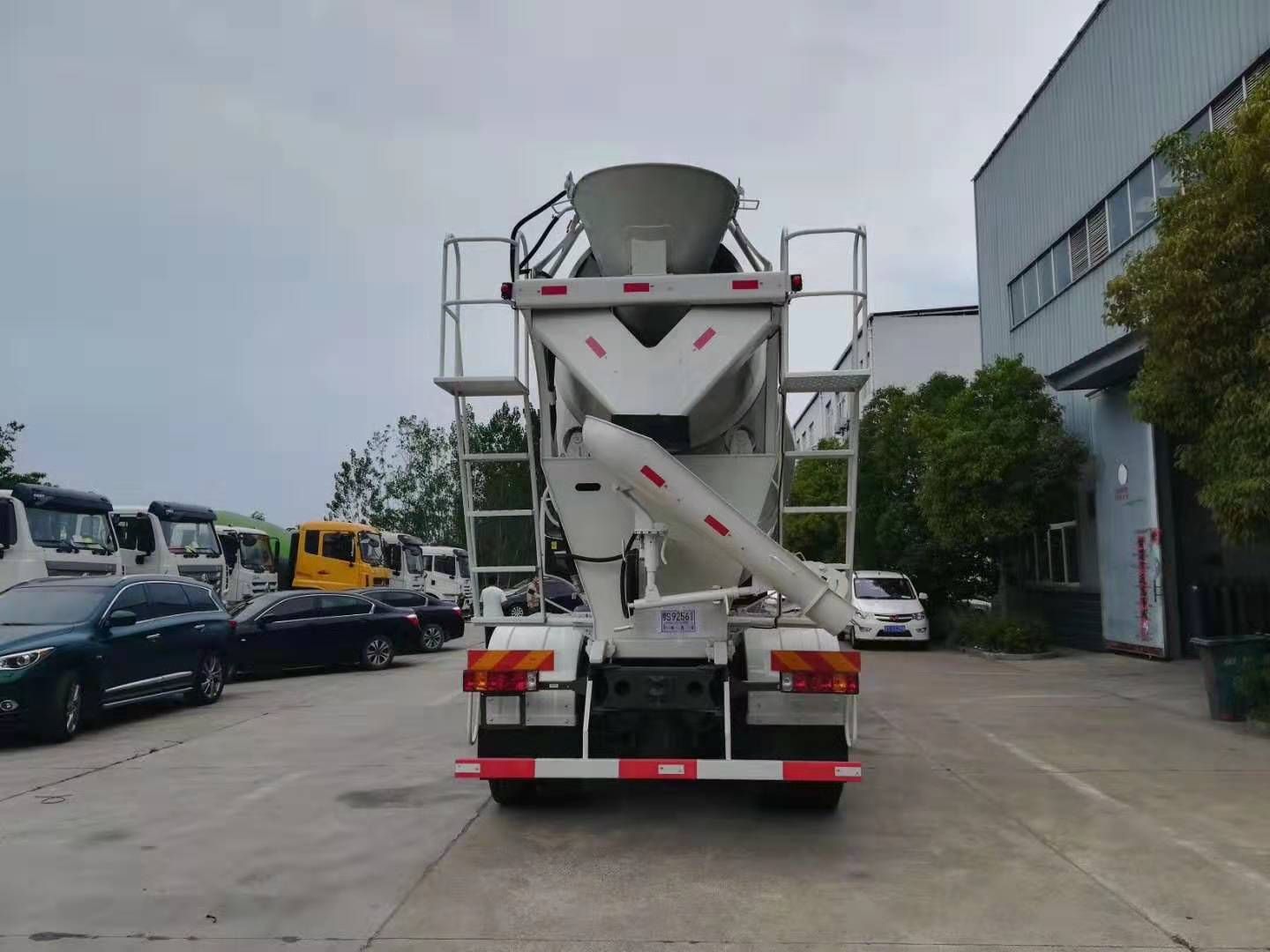

3. The mixer tank loading and discharging system is arranged in the
rear part of the tank, consists of the loading hopper, discharging
hopper and discharging channel.
4. The mixer body is made by carbon steel Q345, high tensile steel
and wear resistance.
5. The concrete is properly mixed and discharged cleanning, the
remaining is only about 0.5%.
Specifications:
HOWO 8X4 10CBM Concrete Mixer Truck
| Cabin | Driving type 8x4 HOWO 70 Standard cab with no berth, 70°hydraulically tillable to the front as attached photo for ref. | |
| Vehicle main Dimensions | Overall dimensions (L×W×H)mm | 10175×2496×3850 |
| Wheel base (mm) | 1800+3200+1350 |
| Wheel track (front/rear) (mm) | 2041/1850 |
| Approach/Departure angle(°) | 16/32 |
| Weight in KGS | Tare Weight | 16560 |
| Front axles loading capacity | 2x7000 |
| Rear axles loading capacity | 2×16000 |
| Max. driving speed (km/h) | | 75 |
| Engine | Brand | SINOTRUK |
| Type | 4-stroke direct injection,6-cylinder in-line with water cooking,
turbo- charging and inter-cooking |
| Horse Power (HP)/(KPM) | 371HP |
| Emission standard | Euro Ⅱ |
| Gearbox | HW19710, 10 forward & 2 reverse |
| Clutch | Reinforced diaphragm clutch, diameter 420mm |
| Steering Gear | ZF power steering, modol ZF8098, hydraulic steering with power
assitance |
| Fuel tank (L) | 400 |
| Tire | 315/80R22.5 tubeless tire 13pieces |
| Mixer Drum |
| Volume | M³ | 10M³ |
| Body Thickness | mm | High tensile strength steel | 6mm |
| Hydraulics System | Gear box | German or Italy made imported |
| Motor | German or Italy made imported |
| Pump | German or Italy made imported |
Details:
Shipping:
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust
prime,2 coats of final pain
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has
power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt,
cement ,etc, dry and bulk goods, can also used to transport
trucks,price is cheap, but the truck always be put on the deck, sea
water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these
three ways. Few sea port only container ship can arrive, so
sometimes, we have to use container ship.
