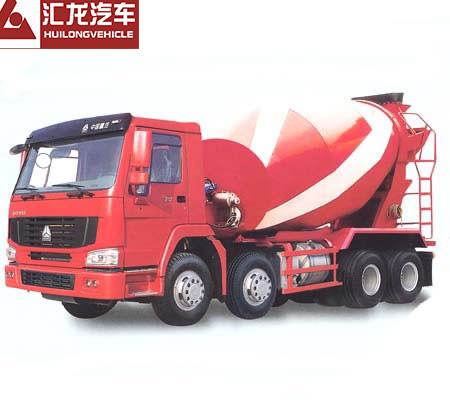

    Self Loading Mobile Concrete Mixer Truck , Red Color Cement Concrete Mixer

    Ask Lasest Price
    Brand Name : Huilong
    Model Number : Concrete Mixer Truck
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 unit per month
    Delivery Time : 4~6 weeks
    • Product Details
    • Company Profile

    Self Loading Mobile Concrete Mixer Truck , Red Color Cement Concrete Mixer

    MiniSelf loading HOWO 4*2 3 CBM Mobile Cement Mixer Truck Diesel Concrete Mixer Truck


    Description:


    • Key Application

    The concrete mixer is a device that homogeneously combines cement, aggregate such as sand or gravel an water to form concrete.

    Self feeding concrete mixers are unique machines designed to batch,mix and transport concrete.The operate of the self feeding concrete mixers batches and introduces the ingredients required for mixing concrete into the drum using the loading bucket.The drum is usually reversible type,tilt type or a combination of both. Self feeding concrete mixers are suited for construction sites where concrete batching plants are unavailable, underfoot conditions are not suited for concrete transit mixer trucks or labor availability is scarce or constrained.


    Advantages


    1. Without operate attention , everybody could operate just like a loader.

    2. 24hours continue running without high temperature,without any stick for hydraulic system

    3. High mixing effiency , 30s finished after loaded all materials From feeding to discharging,just need about 5-8 minutes.

    4. Container rotate controlled by signal , (soft limited & hard limited )together , to keep safety operation.

    5. Container fitted degree same as Italy FIOIR brand ,ensure mixing fully and steady.

    6. Auxiliary machinery could be supply , cement assient , water assient ,remote control assient.

    7. Key part with international design , reducer , hydraulic system and so on.


    Specifications:


    SINOTRUK HOWO 6X4 Mixer Truck (LHD)

    Cabin

    HOWO 76 Standard Cab

    With two bunks, 70° hydraulically tillable to the front as attached photo for ref.

    Vehicle Main Dimensions(L x W x H)mm8825x2500x3850
    Wheel base (mm)3825+1350
    Wheel track (front/rear) (mm)2022/1830
    Approach/Departure angle(°)16/20
    Weight in KGSTare Weight14410
    Loading Capacity10500
    Front axles loading capacity1x8000
    Rear axles loading capacity2x16000
    Max. driving speed(km/h)90
    EngineBrandSinotruk
    ModelWD615.47
    Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
    Horse Power(HP)371HP
    Emission standardEuro Ⅱ
    GearboxHW19710 , 10 forwards & 2 reverse
    ClutchReinforced diaphragm clutch, diameter 430mm
    Steering GearZF 8098,power steering, hydraulic steering with power assistance
    Fuel tank (L)300
    Tire12R22.5 tire , 11 pieces
    Brakes

    Service brake: dual circuit compressed air brake

    Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

    Auxiliary brake: engine exhaust valve brake

    Mixer Body


    Thickness

    End plate6mm in high tensile strength steel
    Mixer body5mm in high tensile strength steel
    Mixer body VolumeM36 M3

    Hydraulics

    MotorEaton brand
    PumpEaton

    Details:



    Self Loading Mobile Concrete Mixer Truck , Red Color Cement Concrete MixerSelf Loading Mobile Concrete Mixer Truck , Red Color Cement Concrete Mixer
