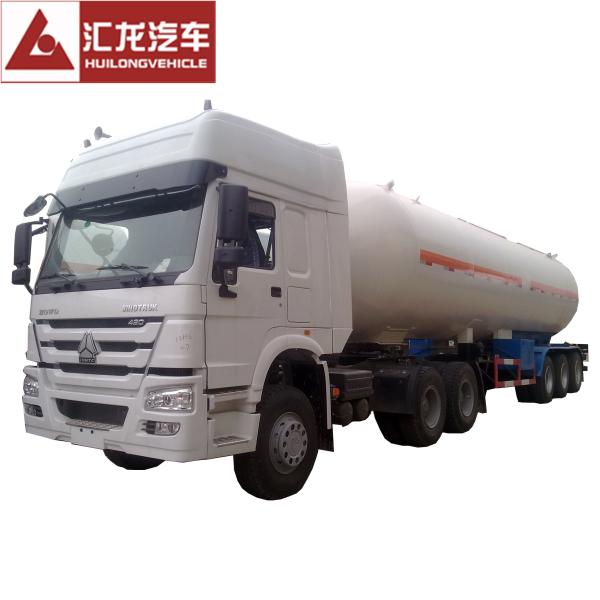

    3 Axle 54.76 CBM Liquid Petroleum Gas Lpg Trailer With Mechanical Suspension

    Ask Lasest Price
    Brand Name : Huilong
    Model Number : LPG Tank Trailer
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Negotiable
    Delivery Time : 4~6 weeks
    • Product Details
    • Company Profile

    3 Axle 54.76 CBM Liquid Petroleum Gas Lpg Trailer With Mechanical Suspension

    3 Axle 54.76 CBM Liquid Petroleum Gas Lpg Trailer With Mechanical Suspension​


    Description:


    • Key Application

    The liquid petroleum gas tank trailer is to load and transport the liquid petrol gas which mainly is propane. In standard atmospheric pressure, the propane is in the status of GAS, while in higher pressure, the propane is in the status of liquid. By this feature, people use the pressure vessel to load the propane in liquid for transportation or storage purpose.


    Advantages:


    • Good quality

    The product adopts double-layer structure, and the material is thicker than the ordinary oil tank. After completion, it will pass various tests and the tests are extremely strict, 100% flaw detection, to ensure the quality of the product is good, safe and reliable.


    • Big volume

    The product has a volume of 54.76cbm, which can be loaded with a large amount of liquid propane, so it has a large volume.


    Specifications:

    Dimension

    Overall dimension

    12600x2500x3900mm

    Tare weight

    16800kgs

    Tank

    Tank volume

    54.76CBM

    Payload

    23000KGS

    Tank material

    16MnR

    Tank design pressure

    1.77Mpa

    Tank design temperature

    50°

    Corrosion allowance

    1.0mm

    Hydraulic test pressure

    2.66Mpa

    Tank parts

    Loading valve and unloading valve

    Gas phase DN25

    Liquid phase DN50

    Emergency shut off device

    Gas phase DN25

    Liquid phase DN50

    Operating by hydraulic

    Closing time less than 10 sec

    Safety valve

    Nominal diameter DN80

    Nominal pressure PN2.5MPa

    Open pressure 1.86~1.94MPa

    Closing pressure 1.49~1.55MPa

    Indicator gauge

    Rotary type

    Surveying range 0~2400mm

    Precision 2.5 Grade

    Other parts

    Pressure gauge, temperature meter

    Trailer chassis

    Axle

    FUWA 13T axle

    Suspension

    Mechanical suspension

    Tyre

    12R22.5

    Wheel rim

    9.0-22.5

    Accessory

    One standard tool box

    Quality 3 Axle 54.76 CBM Liquid Petroleum Gas Lpg Trailer With Mechanical Suspension for sale
