    80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance

    Ask Lasest Price
    Brand Name : Huilong
    Model Number : LPG Tank
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Negotiable
    Delivery Time : 4~6 weeks
    • Product Details
    • Company Profile

    80 CBM Large Volume LPG Tank Trailer 18mm Shell With Stable Performance

    good price 80 CBM big volume LPG tank pressure vessel tank for sale


    Description:


    • Key Application

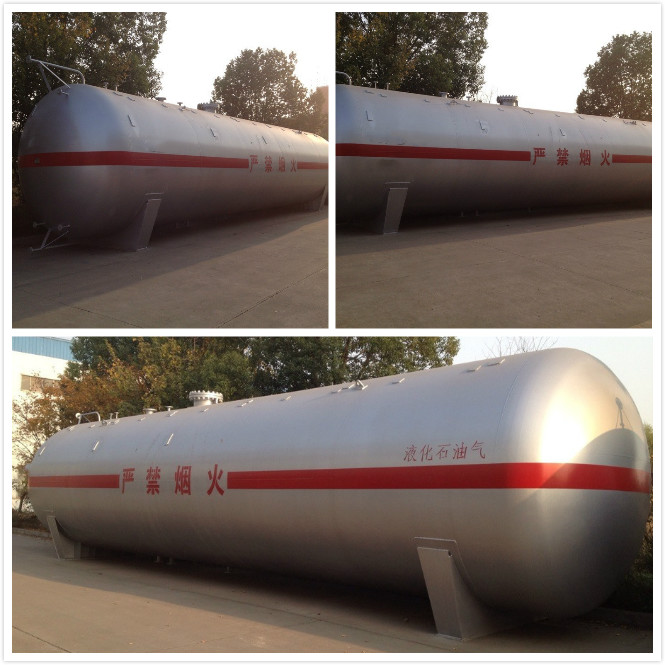

    LPG storage tank is used to load the propane, liquid nitrogen, dimethyl ether.The LPG storage tank could be divided into underground tank and the ground tank.After the gas tank is completed, it will be heated to reduce the welding stress. All the welding seam is tested. The A and B level welding seam is 100% tested by X-ray. The C and D level welding seam is 100% tested by magnetic powder inspection.Our welder has the National Welder Certificate and ASME welder certificate.


    Advantages:


    • Good material

    LPG storage tank is lined with stainless steel, and the outer lining is Q235B or 16MnR, which is solid, reliable and of high quality, so its service life is longer.


    Easy maintenance

    LPG tank is simple in structure and compact in shape, so its maintenance is very simple and does not take too much time.


    Specifications:


    Product NameLPG Tank Truck
    TypeSpecial vehicle
    Place of OriginSuizhou, China
    ChassisSinotruk, HOWO
    Transportation ObjectLiquid petroleum gas
    Payload15000KGS
    Curb Weight16000KGS
    Overall Dimension11700*2500*3000mm
    Tank MaterialQ345R 14mm for tank body
    Wheel Base4300+1350mm
    Engine

    Model WD615.47,

    6 cylinders in line, 4 strokes,

    Turbo charged,

    Water cooled diesel engine,

    371HP,

    Displacement: 9276ml,

    Emission standard: Euro II,

    GearboxHW19710, 10 speed forward, 2 speed reverse
    AxleFront axle HF7, rear axle HW16
    Tank PressureDesign pressure 1.7Mpa, working pressure <=1.6Mpa
    Tank Design TemperatureWorking and design temperature <=50 degree
    Loading & Unloading ValvesGas phase DN25mm, Liquid phase DN50mm
    Other Parts

    One set of urgent shut-off device,

    one safety valve, one indicator gauge
