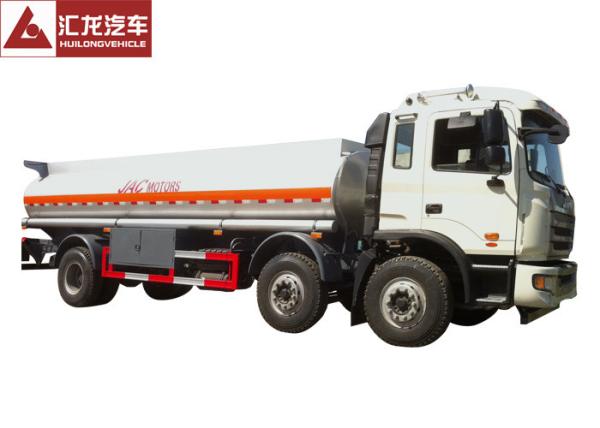

JAC Chassis Fuel Tank Truck Diesel Fuel Truck 11200x2500x2950mm
High Reliability
• Wide Application
The JAC fuel tank can load and transport oil which will be used by
equipments and vehicles driven by oil, e.g.: car, airplane,
mechanical equipment etc. A movable oiling machine is equipped with
the truck.
• JAC Chassis
The 20000l fuel tanker is built on the JAC Chassis which is a major
brand broadly used in vehicle modification.
Advantages:
• High Security
The structure of the cab is designed according to the international
security criteria. Side and front absorption energy areas are added
to greatly improve the safety of the cab.
The cab is made of 1.5mm metal plate which increases the impact
resistance performance.
The absorber system with four point suspension can effectively
reduce the impact during dynamic crash and protects the driver's
life security.
• High Reliability
6000ton hydraulic press has the advantage of three-phased programs:
1st phase: clinching pressure, 2nd phase: forming pressure, 3rd:
verifying pressure.
The main and subordinate beam of the frame is stamped with the
working width 15m. There is no gap between them.
In the surface of the flange, transverse serration is added to
improve the transfer efficiency of the power. The large diameter
drive axle and special axle belt ensure the stable power
transmission.
• European Standard Equipments
There is a complete set of European standard equipments, including
two aluminum alloy manhole covers, one aluminum alloy guard bar,
one discharge valve, one oil and gas recovery device, one leak
proof probe etc.
Specifications:
| Main Dimension | 11200x2500x2950mm |
| Tare Weight | 10600KGS |
| Truck Chassis |
| Chassis Brand | JAC |
| Driving Mode | 6X2 |
| Max Driving Speed | 90km/h |
| Engine Horse Power | 280HP |
| Fabrication Part |
| Tank Body | 20000L, by aluminum alloy 5083 |
| Tank Parts | Aluminum alloy manhole cover Aluminum alloy discharge valve Aluminum alloy bottom valve |
