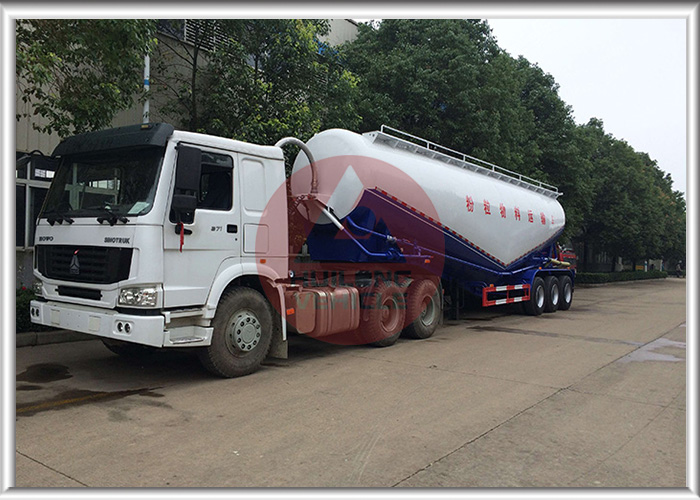

PTO Driven Bulk Tanker Trailer V Shape 38cbm Payload Easy Maintenance​

Description:

• Main Usage

The PTO driven dry bulk cement tank trailer is an updated one of traditional dry bulk tank trailer. Bulk cement tank trailer works on the bulk transportation of fly ash, lime powder and ore powder etc. The trailer is composed of trailer chassis, bulk cement tanks, pipeline system, and automatic unloading equipment. It is often used in many places such as concrete mixing mills, chemical companies, grain reserve centers and so on.

• Self-Driven

This dry bulk cement tank trailer is designed with the V Shape which can improve the capacity of the tank. It is also equipped with a PTO from the tractor, which replaced the diesel engine. For this type of PTO cement tank trailer, the power from PTO to drive the air compressor to supply air to the tank for discharge.

Advantages:

• PTO Driven Pump

This trailer is equipped with a power take-off device. When unloading, it can receive power directly from the tractor, which is more convenient and easier to operate. It also saves the cost of the second engine.

• Less Weight and Easy Maintenance

Because of no auxiliary engine, the tare weight is less and structure is simple to maintain and repair.

Specifications:

Dimension(mm)	11980*2500*4000
Max Payload	38cbm
Manhole	500mm, 2 sets
Engine	4102 diesel engine
Compressor	12m³
King-pin	90mm
Axle	FUWA or BPW 3*13ton
Tyre	Triangle Brand, 12R22.5, 12 sets
Brake System	RE6 relay valve; T30/30 spring brake chamber; 40L air tanks
Steel Spring	10/10/10
Spare Tire Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	JOST brand two-speed, Manual operating, Heavy duty 28ton
Electrical System	1. Voltage: 24V 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light and reflector, side lamp etc.
	One set 6-core standard cable.
