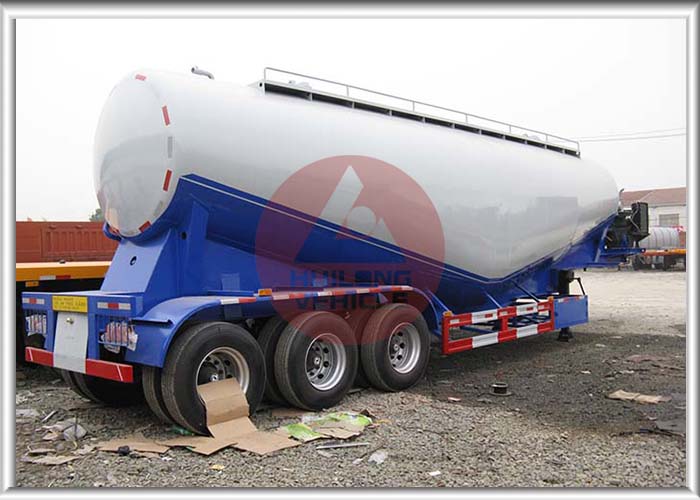

36000l Pneumatic Dry Bulk Trailers 3 Axle High - Strength Carbon Steel

Description:

• Chief Application

Bulk cement transport semi-trailer is also called powder material transporter. It is appropriate for bulk transportation of fly ash, cement, lime powder, ore powder and granular alkali etc. Bulk cement transport semi-trailer is a special-purpose vehicle widely used in industry, agriculture, commerce, power plant, construction industry, etc.

• Low Residual Ratio

The dry bulk tanker is formed with straight or V shape fluid bed. The structure can increase the tank volume, decrease the center of gravity, and speed up the unloading. Therefore, the residual ratio is low. Moreover, varied powder materials can be loaded.

Advantages:

• Superior Quality

Our products are designed with advanced concept. The strictly controlled production process maintains the quality, services and competitive prices.

• Easy Operation

Our product is a v-shaped structure. It is easy to load and unload goods.

• High Transportation Efficiency

Our products can hold 36 cubic meters of cement. The large volume improves transportation efficiency and save costs.

Specifications:

Tank Body
Dimension	12000mm*2490mm*3990mm
Tare Weight	11ton
Total Volume(m3)	36CBM
Tanker Body Material	6mm/ Q235 carbon steel
End Plate	6mm /Q235 carbon steel
Diesel Engine	WEICHAI, kefa 4102
Compressor	BOHAI 12 m³
Manhole Cover	Carbon steel 500mm
Discharging Valve	4 inch
Discharging Pipe	4 inch rubber hose, 1pcs, 6m/each
Chassis
Main Beams	Welding Design, Q345 carbon steel
Axle	3 axles
Landing Gear	28ton type
King Pin	2.00 or 3.5 inch bolt-in king pin
Suspension	leaf spring suspension
Leaf Spring	90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Rim	8.5-20 China Brand
Tire	1200R20 tire, 12units, Triangle brand
Accessories	One standard tool box
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
