Turbo Chargingwaste Compactor Truck , 12SBM Garbage Truck With Compact

Description:

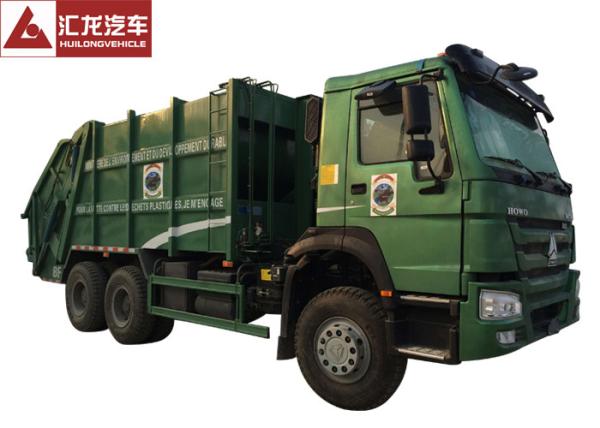

The SINOTRUK 6X4 garbage compactor truck consists of a 6X4 HOWO truck chassis and a 12CBM garbage compactor. The garbage compactor is made high tensile steel Q345, the inside of the steel is coated by non corrosive prime painting. The garbage compactor is hydraulic controlled. The main control board is in the cabin to choose automatic or semi automatic. The rear control system is to control the rear turnover device, the sliding plate and the compacting device. There is emergency button which could stop the work immediately in any dangerous situation. The construction waste is forbidden to load.

Advantages:

Customized Appearance Design

We provide the customized out appearance design. It could improve the image of the sanitation bureau and provide more color for the city.

Sterilization and Deodorization

Some technologies on sterilization and deodorization are applied on the garbage compactor truck to reduce the pollution and the stinky smell.

Specifications:

Main Dimension	10800x2500x3000mm
Tare Weight	13600KGS
Truck Chassis
Chassis Brand	SINOTRUK HOWO
Driving Mode	6x4
Cabin	HW76 cabin, single row
Max Driving Speed	90km/h
Engine Horse Power	336HP, WD615 series engine; 4-stroke direct injection , 6-cylinder in-line with water cooling; turbo-charging and inter-cooling
Gearbox	HW19710, 10 speed forward, 2 speed reverse
Front Axle	HF7
Rear Axle	HW16
Fuel Tank	300L, aluminum fuel tank
Tyre	12R22.5 tubeless tyre, 13pcs
Garbage Compactor
Garbage Box	12CBM, by carbon steel Q345
Compression Ratio	1:3
Household Garbage Density	0.7~0.8 T/m3
The Max. Compression Power	226KN
One Filling Time	25S
Discharge Time	40S
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
