8500KGS 120HP Garbage Compactor Truck 1:3 Compressed Quotient High Reliability

Description:

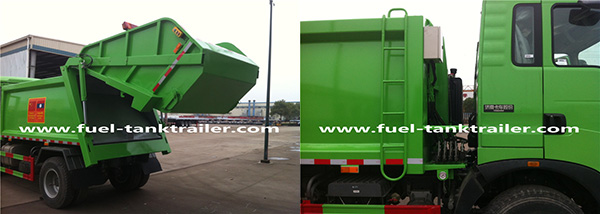

The fully automatic turnover device turns over the plastic dust bin is the new trend and option for the garbage compactor truck. There are standard size dust bin. After the workers put the dustbin on the turnover device, the device will turn and pull the waste in the dustbin into the garbage box.

The hydraulic system provides the hydraulic oil according to the real need, no oil leakage. The hydraulic control system is responsible for the compacting function and the rear turn over device.

Main Application:

The garbage compactor truck works with other types of sanitation purpose vehicle, like water sprinkler truck, garbage collecting truck, sewage tank truck to service for the city cleaning work. All of them play an important role in city sanitation area. It replaces a lot of human physical work and improves the working efficiency.

Advantages:

The garbage compactor truck has the hydraulic control and electronic control system, the structure is complex compared with other types of garbage trucks. Our garbage compactor truck has good welding works, nice hydraulic system lining, good quality multi way valves.

Specifications:

Main Dimension	8600x2500x3000mm
Tare Weight	8500KGS
Truck Chassis
Chassis Brand	SINOTRUK HOWO
Driving Mode	4x2
Cabin	Single cabin, A/C, Radio FM with USB
Max Driving Speed	80km/h
Engine Horse Power	120HP, YN engine 4102QBZL
Gearbox	6 forward &1 reverse
Front Axle	2.4T
Rear Axle	7.5T
Fuel Tank	90L
Tyre	7.00-16, 7pcs
Garbage Compactor
Garbage Box	5CBM, by carbon steel Q345
Compression Ratio	1:3
Household Garbage Density	0.7~0.8 T/m3
The Max. Compression Power	226KN
One Filling Time	25S
Discharge Time	40S
Configuration
