MiniSelf loading HOWO 4*2 3 CBM Mobile Cement Mixer Truck Diesel
Concrete Mixer Truck
Description:
• Key Application
The the Geometric Volume of Mixing Drum is 12 m3. Concrete output
is 12 m3 per Batch. The wide cabin windscreen and the specially
designed loading arms dramatically improve visibility during
casting operations. This high-productivity self loading concrete
mixer is price-worth, easy to use, features excellent daily
performance and reliability. Thanks to these characteristics, it is
the ideal solution for rental purposes and for maintenance
operations.
Advantages
1. Without operate attention , everybody could operate just like a
loader.
2. 24hours continue running without high temperature,without any
stick for hydraulic system
3. High mixing effiency , 30s finished after loaded all materials
From feeding to discharging,just need about 5-8 minutes.
4. Container rotate controlled by signal , (soft limited & hard
limited )together , to keep safety operation.
5. Container fitted degree same as Italy FIOIR brand ,ensure mixing
fully and steady.
Specifications:

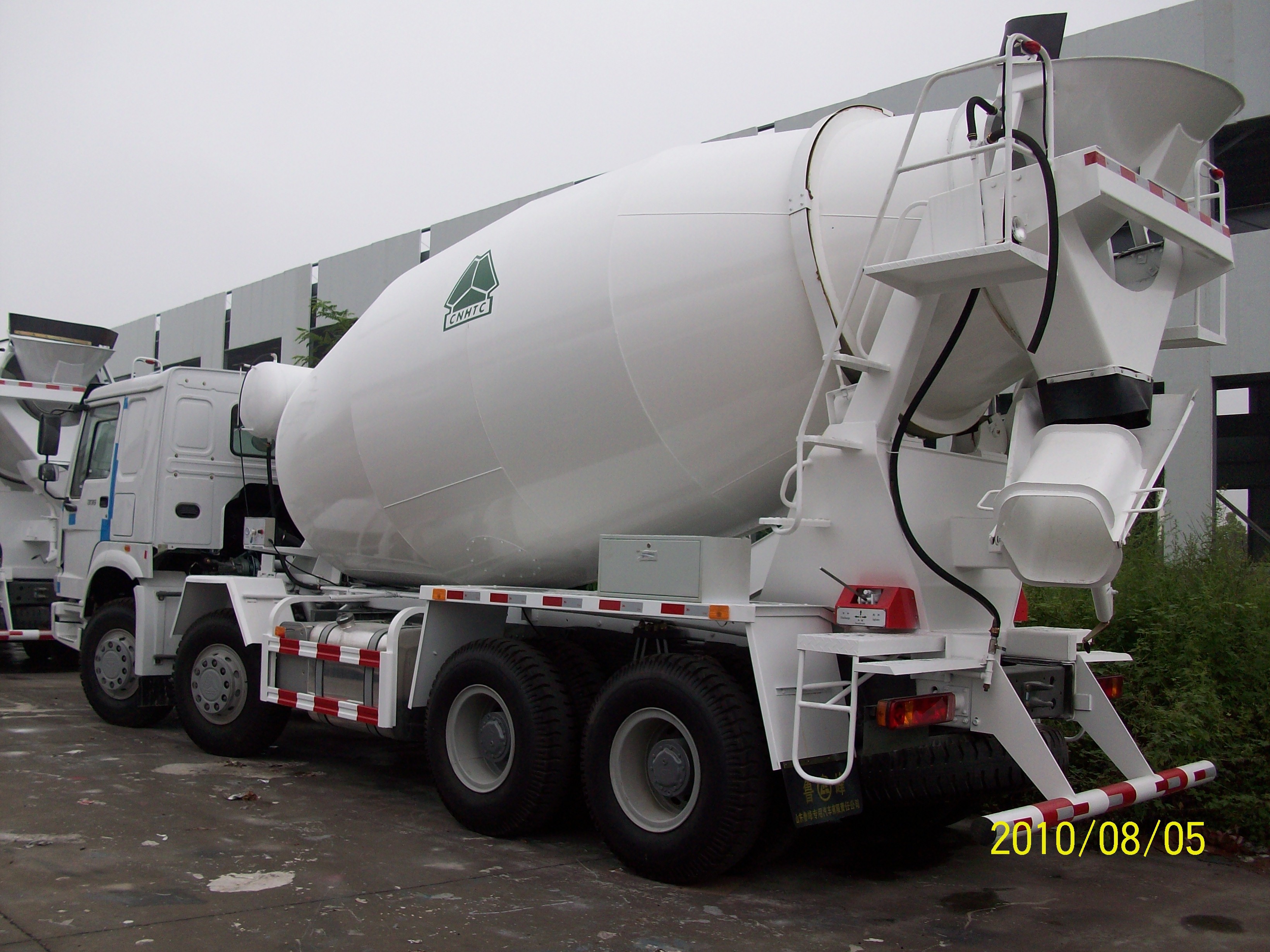

SINOTRUK HOWO 6X4 Mixer Truck (LHD)
| Cabin | HOWO 76 Standard Cab With two bunks, 70° hydraulically tillable to the front as attached
photo for ref. | |
| Vehicle Main Dimensions | (L x W x H)mm | 8825x2500x3850 |
| Wheel base (mm) | 3825+1350 |
| Wheel track (front/rear) (mm) | 2022/1830 |
| Approach/Departure angle(°) | 16/20 |
| Weight in KGS | Tare Weight | 14410 |
| Loading Capacity | 10500 |
| Front axles loading capacity | 1x8000 |
| Rear axles loading capacity | 2x16000 |
| Max. driving speed(km/h) | 90 |
| Engine | Brand | Sinotruk |
| Model | WD615.47 |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling,
turbo-charging and inter-cooling |
| Horse Power(HP) | 371HP |
| Emission standard | Euro Ⅱ |
| Gearbox | HW19710 , 10 forwards & 2 reverse |
| Clutch | Reinforced diaphragm clutch, diameter 430mm |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 300 |
| Tire | 12R22.5 tire , 11 pieces |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air
operating on rear wheels Auxiliary brake: engine exhaust valve brake |
Mixer Body
Thickness | End plate | 6mm in high tensile strength steel |
| Mixer body | 5mm in high tensile strength steel |
| Mixer body Volume | M3 | 6 M3 |
Hydraulics | Motor | Eaton brand |
| Pump | Eaton |
Details:
Shipping:
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust
prime,2 coats of final pain
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has
power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt,
cement ,etc, dry and bulk goods, can also used to transport
trucks,price is cheap, but the truck always be put on the deck, sea
water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these
three ways. Few sea port only container ship can arrive, so
sometimes, we have to use container ship.
