MiniSelf loading HOWO 4*2 3 CBM Mobile Cement Mixer Truck Diesel Concrete Mixer Truck

Description:

• Key Application

Advantages

Specifications:

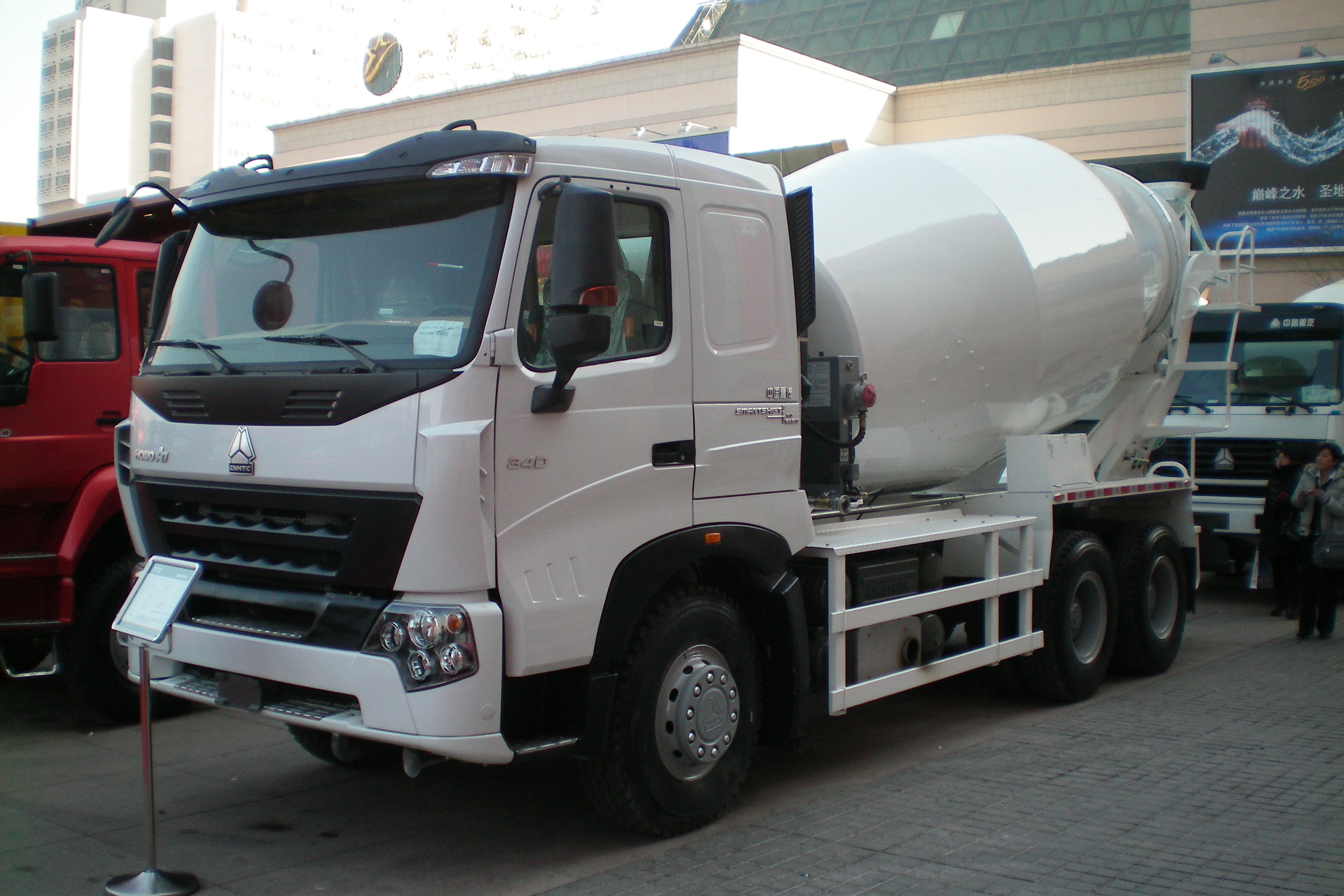

SINOTRUK HOWO 6X4 Mixer Truck (LHD)

Cabin	HOWO 76 Standard Cab With two bunks, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	(L x W x H)mm		8825x2500x3850
	Wheel base (mm)		3825+1350
	Wheel track (front/rear) (mm)		2022/1830
	Approach/Departure angle(°)		16/20
Weight in KGS	Tare Weight			14410
	Loading Capacity			10500
	Front axles loading capacity			1x8000
	Rear axles loading capacity			2x16000
Max. driving speed(km/h)				90
Engine		Brand		Sinotruk
		Model		WD615.47
		Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power(HP)		371HP
		Emission standard		Euro Ⅱ
Gearbox		HW19710 , 10 forwards & 2 reverse
Clutch		Reinforced diaphragm clutch, diameter 430mm
Steering Gear		ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)		300
Tire		12R22.5 tire , 11 pieces
Brakes		Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake

Mixer Body

Details:

Shipping:

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
