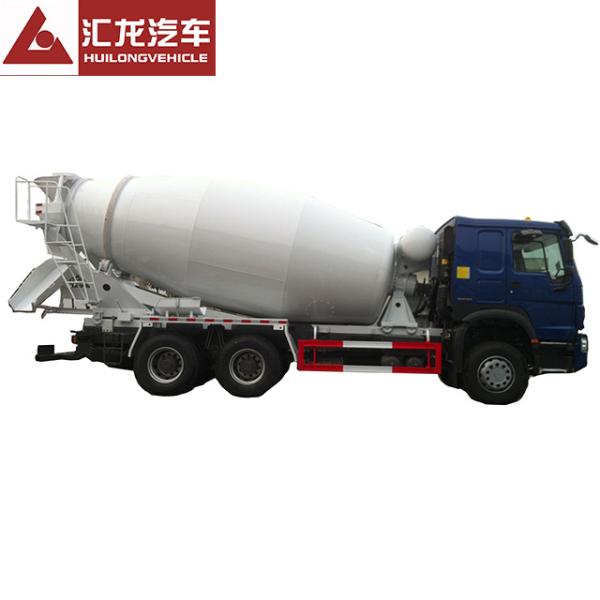

Mobile 6X4 Sinotruk Howo Truck Mounted 10cbm Cement Mixer Truck For Sale

Ask Lasest Price
Brand Name :	Huilong
Model Number :	Concrete Mixer Truck
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	100 unit per month
Delivery Time :	4~6 weeks

Add to Cart

Product Details
Company Profile

Mobile 6X4 Sinotruk Howo Truck Mounted 10cbm Cement Mixer Truck For Sale

Mobile 6X4 Sinotruk Howo Truck Mounted 10cbm Cement Mixer Truck For Sale

Description:

• Key Application

The concrete mixer truck is a device that homogeneously combines cement, aggregate such as sand or gravel an water to form concrete.

The operate of the self feeding concrete mixers batches and introduces the ingredients required for mixing concrete into the drum using the loading bucket.The drum is usually reversible type,tilt type or a combination of both. Self feeding concrete mixers are suited for construction sites where concrete batching plants are unavailable, underfoot conditions are not suited for concrete transit mixer trucks or labor availability is scarce or constrained.

Advantages

1. Equipped with high-strength rear axle, strong bearing capacity, free of disassembly and maintenance.

2. The classic driving room has good soundproofing effect and the whole is more solid and safer! Luxury center console, luxury mobile home.

3. Create the best profit model with high speed, high efficiency, high reliability and fuel economy.

Specifications:

SINOTRUK HOWO 6X4 Mixer Truck (LHD)

Cabin	HOWO 76 Standard Cab With two bunks, 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	(L x W x H)mm		8825x2500x3850
	Wheel base (mm)		3825+1350
	Wheel track (front/rear) (mm)		2022/1830
	Approach/Departure angle(°)		16/20
Weight in KGS	Tare Weight			14410
	Loading Capacity			10500
	Front axles loading capacity			1x8000
	Rear axles loading capacity			2x16000
Max. driving speed(km/h)				90
Engine		Brand		Sinotruk
		Model		WD615.47
		Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power(HP)		371HP
		Emission standard		Euro Ⅱ
Gearbox		HW19710 , 10 forwards & 2 reverse
Clutch		Reinforced diaphragm clutch, diameter 430mm
Steering Gear		ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)		300
Tire		12R22.5 tire , 11 pieces
Brakes		Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake

Mixer Body

Thickness	End plate	6mm in high tensile strength steel
Thickness	Mixer body	5mm in high tensile strength steel
Mixer body Volume	M3	10M3
Hydraulics	Motor	Eaton brand
Hydraulics	Pump	Eaton

Product details:
