Self Loading HOWO 10 CBM 6X4 Concrete Mixer Truck Cement Mixer Truck For Sale
Description:
• Key Application
Concrete mixer truck is a special truck used to transport concrete
for construction; because of its shape, it is often referred to as
a field snail truck. These trucks are equipped with cylindrical
stirrer to carry mixed concrete. In the course of transportation,
the mixing drum will always be rotated to ensure that the concrete
carried will not solidify. After the concrete is transported, the
inner part of the mixing drum is usually flushed with water to
prevent the hardening of the concrete from occupying space, so that
the volume of the mixing drum becomes smaller and smaller.
Advantages
1. Centralized Lubricating System for Easy Maintenance
2. Closed Circuit Hydraulic Rotation System
3. Spacious Driver's Cab with Shovel Loader Weigher, A/C and Fire
Extinguisher inside.
4. The product parameters are just a reference, not absolute.If you
think the configuration is reasonable, you can order directly.If
you have your own list of parameters, we can tailor it to your
needs.
5. The price shown in the product introduction is a range price,
and the final price is determined according to the configuration of
the product and the quantity ordered.
Specifications:

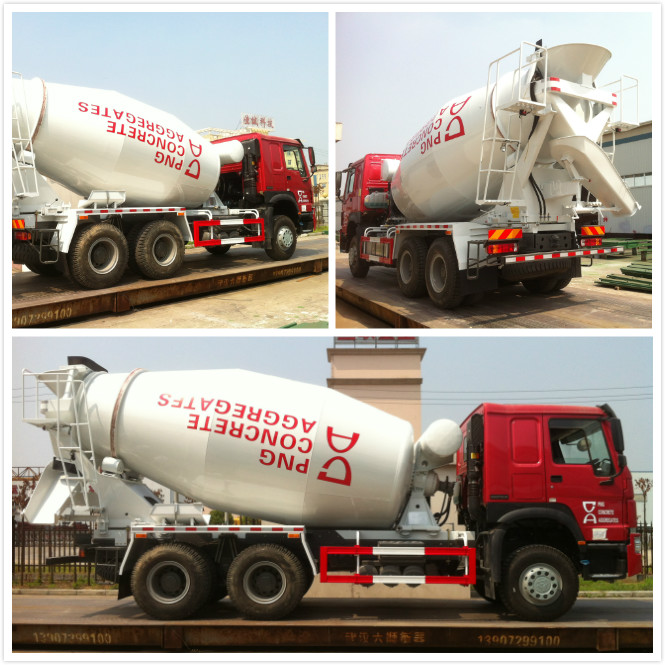

SINOTRUK HOWO 6X4 Mixer Truck (LHD)
| Cabin | HOWO 76 Standard Cab With two bunks, 70° hydraulically tillable to the front as attached
photo for ref. | |
| Vehicle Main Dimensions | (L x W x H)mm | 8825x2500x3850 |
| Wheel base (mm) | 3825+1350 |
| Wheel track (front/rear) (mm) | 2022/1830 |
| Approach/Departure angle(°) | 16/20 |
| Weight in KGS | Tare Weight | 14410 |
| Loading Capacity | 10500 |
| Front axles loading capacity | 1x8000 |
| Rear axles loading capacity | 2x16000 |
| Max. driving speed(km/h) | 90 |
| Engine | Brand | Sinotruk |
| Model | WD615.47 |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling,
turbo-charging and inter-cooling |
| Horse Power(HP) | 371HP |
| Emission standard | Euro Ⅱ |
| Gearbox | HW19710 , 10 forwards & 2 reverse |
| Clutch | Reinforced diaphragm clutch, diameter 430mm |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 300 |
| Tire | 12R22.5 tire , 11 pieces |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air
operating on rear wheels Auxiliary brake: engine exhaust valve brake |
Mixer Body
Thickness | End plate | 6mm in high tensile strength steel |
| Mixer body | 5mm in high tensile strength steel |
| Mixer body Volume | M3 | 6 M3 |
Hydraulics | Motor | Eaton brand |
| Pump | Eaton |
Details:
Shipping:
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust
prime,2 coats of final pain
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has
power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt,
cement ,etc, dry and bulk goods, can also used to transport
trucks,price is cheap, but the truck always be put on the deck, sea
water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these
three ways. Few sea port only container ship can arrive, so
sometimes, we have to use container ship.
