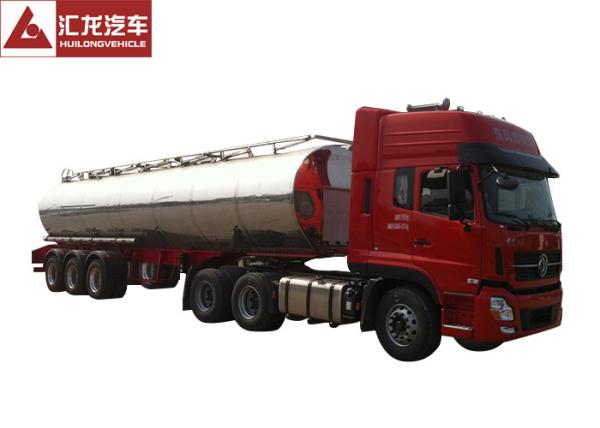

Food Grade Milk Tank Trailer Dual Line Brake System Automatic Flux
Valve
Description:
• Key Application
The milk tank semi-trailer is also named fresh milk trailer or
edible oil trailer. Using the multi-compartment setting, various
liquid diets can be transported, covering liquid syrup, ewe's milk,
beer, fruit juice, and cold drink etc. The allowable capacity of
the tank is 316 liters. The powerful engine offers better fuel
economy.
• Food Security
The tank is made of food grade stainless steel meeting standards of
food security. The reaction between toxic metal and acid-base is
avoided.
Advantages:
• Germ-Free Tank
The germ-free tank can inhibit bacteria and won't react with milk.
For the line-haul, a cooling device can be equipped. Besides, the
insulating coat embedded in the tank can minimize the temperature
shift to stop the deterioration of the milk.
• Automatic Flux Valve
The automatic flux valve is installed at the top of the tank and
can reduce the evaporation loss of liquid. In addition, the shape
of the tank can be maintained when the positive and negative
pressure generates in the tank.
• Anti-Static and Anti-Fire
A static electricity protection ground device can be provided to
eliminate the fire risk.
• Low Residual Liquid
Residual liquid in the tank is less than 1%, which accords with the
international standard.
• Optional Components
Flowmeter, level gauge, safety lock, and leakage prevention device
can be installed according to the needs.
Specifications:
| Tare Weight | 8000kg -- 14000kg |
| Loading Capacity | 316L |
| Axle Weight Load | 13T/16T |
| Axle Brand | FUWA/BPW/others |
| Suspension | Common Mechanical or Air Suspension |
| King Pin | JOST 3.5" traction pin |
| Dimensions | 10500-13000mm*2500mm*3800mm |
| Support Legs | JOST Single 28T heavy duty |
| Wheel Rim | 9.0-20 |
| Wheelbase | 1310mm |
| Steel Spring | 10 pieces per axle |
| Ladder | Mechanical ladder |
| Accessories | 1 Set standard tool box |
| Light | Tail lamp with turn signal; brake light & reflector, side lamp etc. |
| Painting | 1coat of anticorrosive prime, twice coats of final paint |
| Tire Spec. | 12R22.5 Vacuum tire |
| Number of Tire | 8/12 pieces |
| Spare Tire Carriers | 2 pieces |
| Manhole Cover | 500mm manhole cover .2 sets with 2 breather valve |
| Discharge Valve & Pipe | 4 inch disc valve & 4 inch seamless steel tube |
| Brake Chamber | 4 big chamber |
| Brake System | Dual Line Brake system |
