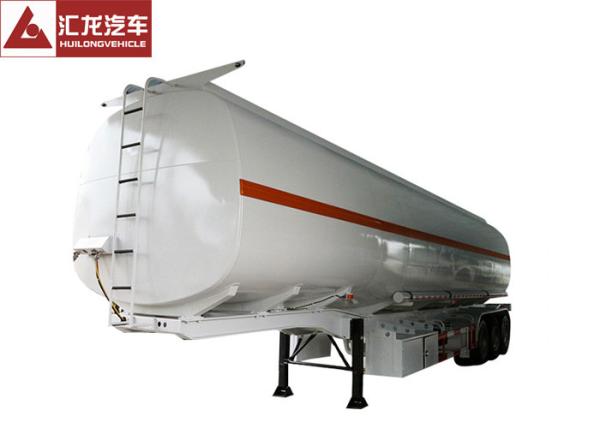

Heavy Duty Fuel Tank Trailer Carbon Steel Body Top Ladder With Hand
Rail
Description:
• Wide Application
Heavy duty carbon steel fuel tank trailer is to transport the fuel
in long distance. It has the character of big volume, heavy duty.
This fuel tank trailer could be divided into multi independent
compartments to load different oil, fuel. The independent
compartment also has the function to gauge and identify the volume.
The main structure of the heavy duty carbon steel fuel tank trailer
includes the trailer chassis, the running gear, the tank, the tank
parts etc. Since it is a king of heavy duty trailer, the trailer
chassis and tanker are designed to suit heavy loading.
This type of fuel tank trailer is very popular in remote area,
which does not have strict control on road regulation.
• Strong Practicability
Our fuel tank trailers use carbon steel tanks and have low
manufacturing costs. This product has a large capacity and can
transport 45,000 to 60,000 liters of fuel. It is suitable for oil
stations, oil field, oil factory, etc. where large amounts of fuel
are needed to be transported or stored. Time and costs spent on
transportation can be saved.
Advantages:
• Solid and Low-cost
This carbon steel fuel tank trailer is made of 5mm steel plate,
which is of strong quality, easy to repair and low in production
cost.
• Anti-corrosion and Anti-rust Spray Paint
The tank is sprayed with anti-corrosion and anti-rust spray paint,
which can reduce the corrosion of chemicals on the fuel tank and
prevent the tank body from rusting. Appearance looks good and the
working life is extended.
Specifications:
| Overall Dimension (mm) | 11900x2500x3800 |
| Thickness(mm) | Tank body: Q235/5mm carbon steel End plate: Q235/6mm carbon steel |
| Volume | 30000L-60000L |
| Axle Brand | FUWA 13Ton Axle, top brand |
| Axle Number | Three |
| Compartment | Optional |
| Manhole Cover | 500mm manhole cover; 3 sets with 3 breath valve |
| Ladder | Top ladder with handrail, side ladder |
| Discharge Valve | 4'' discharge valve |
| Discharge Pipe | 4'' seamless steel tube |
| Suspension System | Leaf spring suspension |
| Bottom Valve Quantity | 3 units |
| Steel Spring | 10/10/10 leaf spring suspension 90mm width, 13mm thickness |
| The Material of Main Beam | Height | 500 mm |
| Upper Plate | 14 mm |
| Down Plate | 16 mm |
| Middle Plate | 8 mm |
| Tire Type | 12R22.5, 12units |
| Traction Pin | 50mm/90mm, JOST brand |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Landing Gear | Standard brand 28ton external, 2 speed |
| Brake System | Dual Line braking system |
| Brake Air Chamber | Six big double air chambers |
