ASME Standard Aluminum LPG Tank Trailer Durable Long Life Span Large Sized

Description:

The ASME is American Society of Mechanical Engineers. It regulates the standards and criteria of different manufacturing industries. It is widely accepted and acknowledged in more than 90 countries. The ASME also has fabrication standard about the pressure vessel which includes the LPG tank trailer. This ASME standard LPG tank trailer consists of the pressure tank, tank parts, trailer chassis and running gear. The tank parts are all ADR or DOT approved tank parts, including the gas phase valve for gas flow, the liquid phase valve for liquid flow, the emergency shut down valve for gas phase and liquid phase.

Main Application

The ASME standard LPG tank trailer is to load and transport the LPG on road from different gas station and gas depot. In some modernized, the LPG is mainly transport by the pressure tubes beneath the ground. However, for the delivery between cities to cities, cities to towns, the road transportation by LPG trailer or LPG truck is still the main mean.

Advantages:

1. The ASME has high standard and criteria about the fabrication of pressure vessel.
2. Heavy duty trailer chassis and durable running gear.

Specifications:

Dimension
Overall Dimension	12200x2500x3800mm
Tare Weight	16200kgs
Tank
Tank Volume	52CBM
Payload	23000KGS
Tank Material	16MnR
Tank Design Pressure	1.77Mpa
Tank Design Temperature	50°
Corrosion Allowance	1.0mm
Hydraulic Test Pressure	2.66Mpa
Tank Parts
Loading Valve and Unloading Valve	Gas phase: DN25 Liquid phase: DN50
Emergency Shut Off Device	Gas phase: DN25 Liquid phase: DN50 Operating by hydraulic Closing time: less than 10 sec
Safety Valve	Nominal diameter: DN80 Nominal pressure: PN2.5MPa Open pressure: 1.86~1.94MPa Closing pressure: 1.49~1.55MPa
Indicator Gauge	Rotary type Surveying range: 0~2400mm Precision: 2.5 Grade
Other Parts	Pressure gauge, temperature meter
Trailer Chassis
Axle	FUWA 13T axle
Suspension	Mechanical suspension
Tyre	12R22.5
Wheel Rim	9.0-22.5
Accessory	One standard tool box

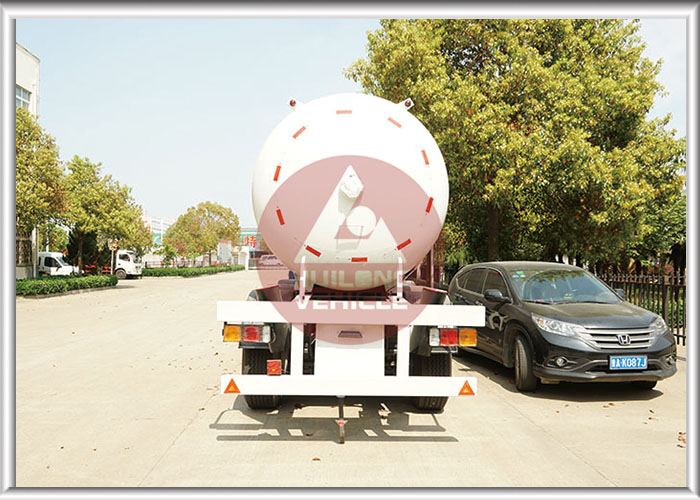

Gallery
