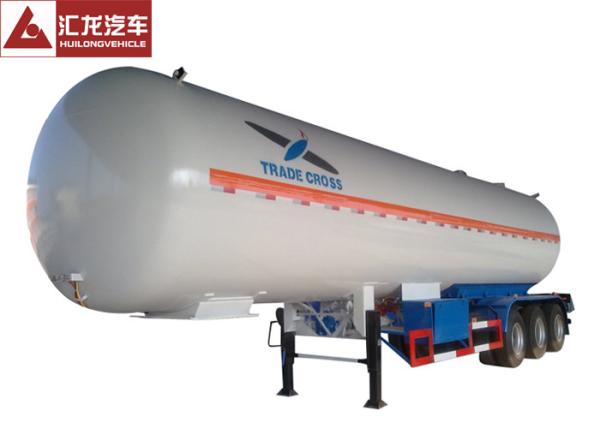

3 Axle LPG Tank Semi Trailer High Pressure Vessel Hydraulic Operating

Description:

The 3 axle LPG tank trailer is a kind of pressure vessel, the tank capacity is 54.76CBM. It is used to load the liquid petroleum gas which the main component is propane. The density of the LPG is about 0.42ton/cbm, depending on the degree of purity. So this 54.76CBM gas tank is about to load the 23ton LPG. The running gear consists of the 3pcs BPW axle, 13ton capacity, German type heavy duty mechanical suspension with tubeless tyre. The tank thickness is 14mm to bear the pressure inside. All welding seams are carefully checked by nondestructive testing to ensure 100% safety of the tankers.

Main Application

The 3 axle LPG tank trailer is used to transport the LPG from different station and gas depot. It is an important vehicle for the LPG on road transport. The gas station owner or professional gas transporter normally owns different types of LPG trailers and LPG trucks.

Advantages:

1. Big volume to load and transport the LPG
2. High standard of fabrication and quality.

Specifications:

Dimension
Overall Dimension	12600x2500x3900mm
Tare Weight	16800kgs
Tank
Tank Volume	54.76CBM
Payload	23000KGS
Tank Material	16MnR
Tank Design Pressure	1.77Mpa
Tank Design Temperature	50°
Corrosion Allowance	1.0mm
Hydraulic Test Pressure	2.66Mpa
Tank Parts
Loading Valve and Unloading Valve	Gas phase: DN25 Liquid phase: DN50
Emergency Shut Off Device	Gas phase: DN25 Liquid phase: DN50 Operating by hydraulic Closing time: less than 10 sec
Safety Valve	Nominal diameter: DN80 Nominal pressure: PN2.5MPa Open pressure: 1.86~1.94MPa Closing pressure: 1.49~1.55MPa
Indicator Gauge	Rotary type Surveying range: 0~2400mm Precision: 2.5 Grade
Other Parts	Pressure gauge, temperature meter
Trailer Chassis
Axle	FUWA 13T axle
Suspension	Mechanical suspension
Tyre	12R22.5
Wheel Rim	9.0-22.5
Accessory	One standard tool box
Configuration
