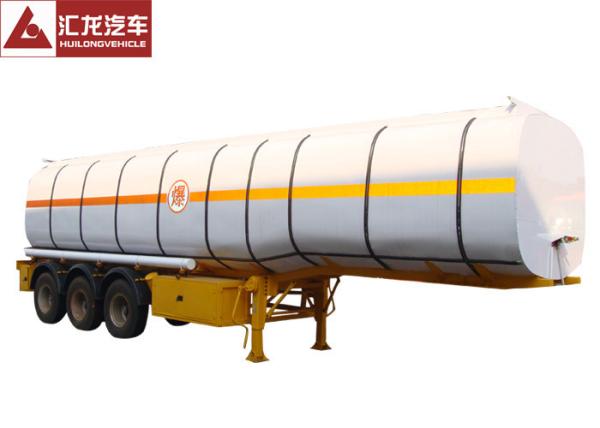

Monoblock Shape Chemical Tank Trailer Heavy Duty Carbon Steel Non - Leakage

Description:

• Broad Application

The chemical tank trailer can transport bulk liquid dangerous goods and non-chemical hazardous goods, e.g.: food and drug (wine, ethanol, hydrogen peroxide), daily chemicals (perfume, disinfector), LNG. Based on the specific application of the trailer, various chemical pumps can be installed, like corrosion resistant pump, electrical pump, and pneumatic pump. Those pumps have large flow rate and fast suction.

Advantages:

• Stable Tank

The monoblock tank has a larger capacity and a low center of mass. Because longitudinal curvature of the elliptical part is smooth and continuous, the stress distribution in the cap is relatively even.

• Carbon Steel Tank

The smelting technology of carbon steel is easy and heat treatment can be used to consolidate the carbon steel. Carbon steel also has the good performance in pressure and machining processing. Its distinctive features cover seamless welding, impact-resistant, aging-resistant, non-leakage, corrosion-proof etc. More importantly, carbon steel is cheaper than stainless steel.

• Non-Leakage Tank

The thirty thousand volts spark breakdown test is performed to check whether there is tiny hole destroying the completeness of the inner plastic.

Specifications:

Dimension
Overall Dimension	11500x2500x3350mm
Tare Weight	10600KGS
Tank
Shape	Monoblock shape tank
Total Volume	30000L
Tank Body Material	Carbon steel 5mm
Tank End Plate	Carbon steel 6mm
Compartment	Single compartment
Insulation Material and Thickness	Fiber glass / polyurethane, 50mm
Outside Sheet	1.2mm steel sheet
Manhole Cover	Aluminum alloy API manhole cover 500mm, 2 sets with 2 breath valve
Bottom Valve	1 set aluminum pneumatic bottom valve
Discharging Valve	2 sets 100mm discharging valves
Discharging Pipe	4” rubber hose, 2 pcs, 6m long
Heating System	Optional
Trailer Chassis
Main Beam	Special design I beam
Axle	BPW axle
Landing Gear	JOST landing gear
Kingpin	JOST kingpin 2 inches
Suspension	Mechanical suspension
Braking System	T30/30 air chamber, WABCO relay valve
Tire	12R22.5
Wheel Rim	9.0-22.5
Accessories	Tool box, spare tire carrier
