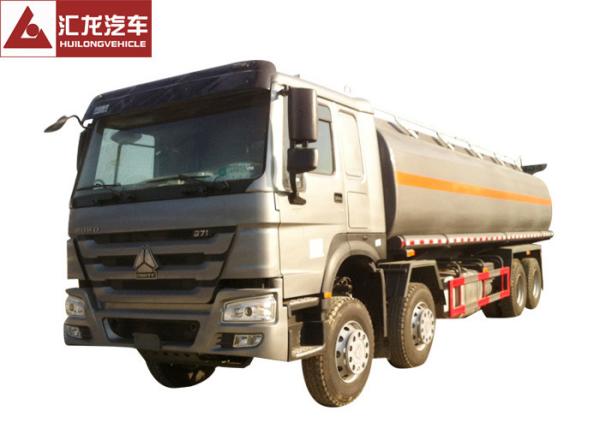

371hp Chemical Tank Trailer , 8x4 Aluminum Tanker Trailer Single Compartment

Description:

• Main Application

The chemical transport truck can transport a great many of liquid chemical materials, e.g.: hydrofluoric acid, formic acid, acetic acid etc. The tank material depends on the characteristic of the chemical product.

• Wide Working Temperature

The working temperature of this carbon steel tank floats around －20℃～60℃. Concentrated sulfuric acid (concentration > 97%) can be loaded by 6-8mm carbon steel tank.

Advantages:

• Tank Technology

The modified polyethylene particle is put into the tank and processed with the hot rolling technology. The formed tank is high-impact, non-leakage, and corrosion preventive.

The initial crack detection shall be conducted for the tank in progress and then other components can be installed.

The steel wire mesh is spot-welded on the front and rear cap. After curing, the spark test machine and x-ray detector are used for the test.

• Ductile Material

The tank material shall be non-corrosive and has good mechanical property. Basic standards for production, examination and security can be met. Carbon steel is ductile and shall follow the standard GB/T 8163. The yield strength at normal temperature is lower than 460MPa and the upper limit of tensile strength is no greater than 725MPa. The ratio of yield strength and lower limit of tensile strength is less than 0.85.

Specifications:

Dimension
Overall Dimension	11500x2500x3100mm
Tare Weight	12800kgs
Tank
Shape	Square round shape
Total Volume	22000L
Tank Body Material	Carbon steel with plastic liner inside
Tank End Plate	Carbon steel with plastic liner inside
Compartment	Single compartment
Manhole Cover	500mm steel manhole cover with plastic liner
Discharge System	4 inches discharge pipes and valve with plastic liner
Truck Chassis
Chassis Brand	SINOTRUK HOWO
Driving Type	8x4
Cabin	HW76 cabin, 2 seat one sleeper with AC
Engine	WD615 engine, 371HP, emission EURO II
Gearbox	Manual gearbox HW19710
Tire	12R22.5
Wheel Rim	9.0R22.5
Accessories	One tool box, 2pcs extinguisher
Gallery
