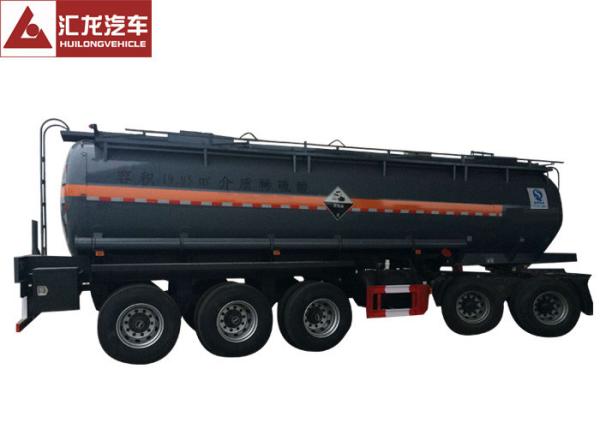

Dilute Tanker Truck Trailer Mono Block Cylinder 22cmb Capacity Integral Forming

Description:

• Wide Application

The dangerous acid tank trailer is applicable for the storage and transportation of most corrosive liquid and is extensively applied in many fields, like chemical, metallurgical and pharmaceutical industry etc. The sulfuric acid transported by the corrosive material tank trailer is the most active inorganic acid and can react with many metals. Hence, the production of the tank strictly complies with relevant criteria.

Advantages:

• Integral Forming

The tank is handled by automatic reeling and rotational moulding. The flange of the nozzle is solid and has to be cut by a puncher. There is no any welded seam in the tank and the lining of the flange. Hence, both the tank and the flange are durable and clean. Any acid or alkali with various concentrations can be resisted.

• Reinforced Tank

Wave-proof boards are equipped in the tank and designed with two inclined structures which can firmly support the tank during the transportation.

Specifications:

Main Dimensions
Overall Dimension	11800x2500x3250
Tare Weight	10900
Loading Capacity	45ton
Tank Body
Shape	Mono block Cylinder
Total Volume (m3)	22cmb
Tanker Body Material	6 mm carbon steel
End Plate	6 mm carbon steel
Inner Lining	16 mm plastics
Manhole Cover	∮500mm; 2 sets with 2 breather valve; steel manhole cover with plastic lining
Discharging Valve	2 sets ∮100mm discharging valve, stainless made
Safety Valve	1 set of safety valve
Discharging Pipe	4” rubber hose, 2pcs, 6m long
Chassis
Axle	3pcs BPW axle, 13Ton capacity
Landing Gear	JOST brand Two-speed; manual operating; heavy duty landing gear
King Pin	JOST brand 2” bolt-in king pin
Suspension	Mechanical suspension with leaf spring
Braking System	WABCO RE 6 relay valve; T30/30 Spring brake chamber; 40L air tanks
Wheel Rim	9.0-22.5 wheel rim, 12 pieces
Tire	12R22.5 tubeless tire , 12 pieces
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box, one spare tyre and carrier

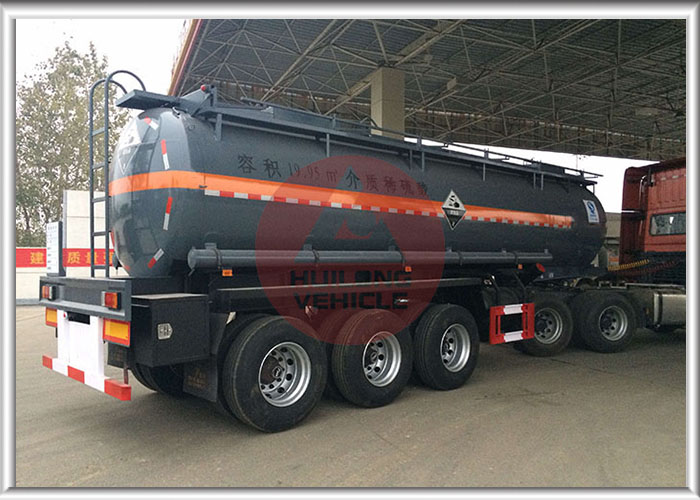

Gallery
