98% Sulfuric Acid Chemical Tank Trailer 21000L 11800x2500x3000mm Special Design V Beam

Description:

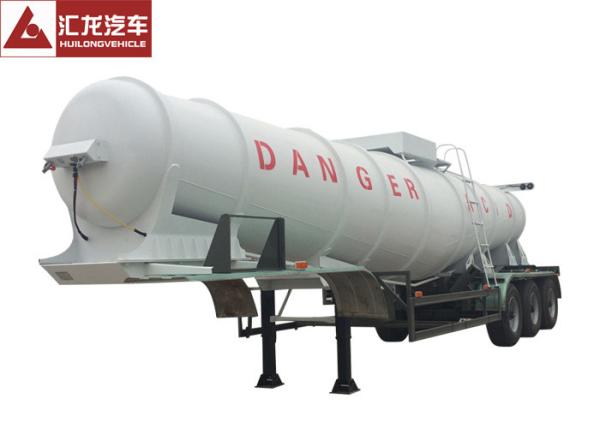

This 3 axle V shape tank trailer is for 98% sulfuric acid transportation. The tank could be made by stainless steel or carbon steel. The 98% sulfuric acid is a kind of toxic, dangerous liquid, but non-corrosive for steel. So the carbon steel tank is more economic. The tank is designed into V shape for better discharging. All tank parts are stainless steel one which is anti-corrosive and long life span. The running gear is 3 axle BPW brand with air suspension and tubeless tyres.

Main Application

The sulfuric acid tank trailer is normally service for the mining areas or the chemical factories. Since the material it loaded is highly toxic and dangerous, it requires safety loading and discharging.

Advantages:

Our factory Hubei Huilong Special Vehicle company mainly concentrates on different types of tankers and semi trailers. The chemical tanker we made is in different materials and shapes to suit for different chemicals. The chemical tank we made has the advantages below:

1. Customized tank. We design the tank according to chemical features to ensure the highest level of safety loading.
2. Air suspension for better protection of the whole trailer.

Specifications:

Dimension
Overall Dimension	11800x2500x3000mm
Tare Weight	10500KGS
Tank
Shape	V shape tank
Total Volume	21000L
Tank Body Material	Carbon steel
Tank End Plate	Carbon steel
Compartment	Single compartment
Manhole Cover	Steel manhole cover
Bottom Valve	Stainless steel valve
Discharge Valve	Stainless steel valve
Trailer Chassis
Main Beam	Special design V beam
Axle	BPW axle
Landing Gear	JOST landing gear
Kingpin	JOST kingpin 2 inches
Suspension	Mechanical suspension
Braking System	T30/30 air chamber, WABCO relay valve
Tire	12R22.5
Wheel Rim	9.0-22.5
Accessories	Tool box, spare tire carrier
Configuration

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
