3mm Checker Plate Construction Equipment Trailers Auto - Tuning I Beam Structure

Description:

• Core Application

The low bed semi-trailer is also called construction machinery trailer, flatbed trailer, or low flatbed trailer. The trailer specializes in transporting non-removable devices and is widely used in plants, building site where large production or project is arranged.

• Mechanical Handling

Dual mechanical spring ramps and landing gears are installed at the rear end. Usually, mechanical equipments are loaded from the rear end. In other words, they are moved from the frame of the rear wheel or fixed on the semi-trailer after removing wheels.

Advantages:

• Solid Tires

Solid tires with high elasticity are used to improve the carrying capacity and working life. Due to the bumpiness during driving, the damage to the goods can be reduced as well.

• Auto-tuning

Dual suspended rotatory pedestals can automatically adjust the balance and steadiness of the low bed trailer.

• I Beam Structure

The main beam is designed with I beam structure to achieve the 80ton payload.

Specifications:

Dimensions
Tare Weight	15500kg
Dimension	17000x3000x3664mm
Payload	80000kg
Technical Data
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B; welded by automatic submerged-arc processes; Top Flange 20mm,width 140mm; Middle Flange 11.5mm; Bottom Flange 20mm, width 140mm
Axle	4 axles / Loading capacity each axle: 13T
	Brand Name: FUWA
Suspension	Mechanical suspension or air suspension-optional upon choice
Leaf Spring	10-piece leaf spring
Floor	3mm checker plate
Ramp	Mechanical spring ramp or hydraulic lifting ramp-Optional upon requirement
King Pin	JOST brand 2” Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	8.25-22.5
Tyre	11R22.5
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust; 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box

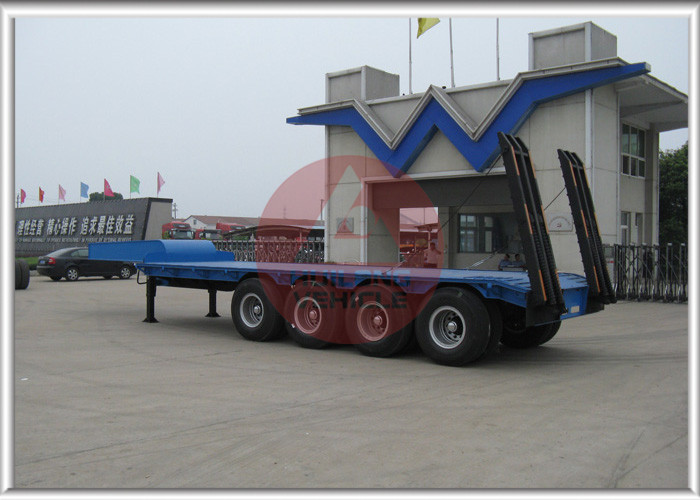

Gallery
