Store House Cargo Container Trailer Leaf Spring Large Payload Solid Frame

Description:

• Core Application

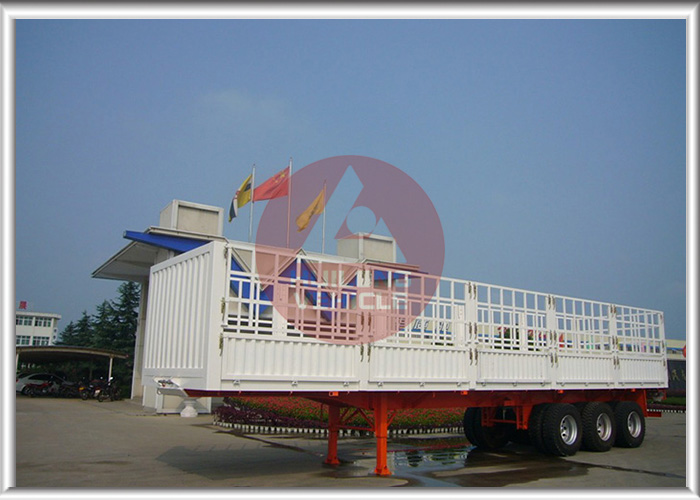

The cargo part of the storehouse cargo transport trailer adopts a fence structure and is a common semi-trailer vehicle. The main purpose of warehouse semi-trailers is to transport farm and light products like fruits, vegetables, and daily supplies.

• Large Payload

The storage semi-trailer has 3 axles and the maximum load is up to 40 tons. It is made of steel plate with high strength, and welded by automatic submerged-arc processes.

Advantages:

• Solid Frame

The frame is the integration of longitudinal beam and crossbeam. Strength, stiffness and toughness can be balanced. The solid frame provides large carrying capacity and will not be permanently distorted.

• Low Abrasion

The load of each axle is average and the angle of system pull rod is appropriate. During the driving on the bumpy road, the friction and slippage distance can be reduced. Hence, the tire wear can be effectively decreased. Furthermore, the adjustable pull rod and wheel base can efficiently avoid partial occlusion of tire.

• Wide Adaptability

The stake trailer is applied in highway, urban highway and specializes in curved mountain road. Various goods can be transported, such as coal, bulk cargo, cement, and steel bar etc. The attendance rate of the trailer is high.

Specifications:

DIMENSIONS
Tare Weight	8200KGS	Payload	40000KGS
Overall Length	12500mm	Overall Width	2500mm
SPECIFICATION
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345; Welded by automatic submerged-arc processes; Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm
Axle	3 axles
	Brand name: BPW, L1 or FUWA
Suspension	Mechanical suspension or air suspension
Spring	Leaf spring or air bag
King Pin	JOST brand 2” Bolt-in King Pin
Landing Gear	JOST brand Two-speed; manual operating; heavy duty landing gear
Wheel Rim	8.5-20 ,9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim
Twist Lock	12 no. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container
Tyre	11.00R20 , 12.00R20, 11R22.5,12R22.5,315/80R22.5
Spare Tyre	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks
Painting	Complete Chassis sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint
Accessories	One standard tool box
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.
