2 Axle Low Bed Trailer

Description:

• Wide Application
Low bed trailers usually transport inseparable large equipments like construction machineries etc. Ramps installed on the rear end can move mobile machines over vertical obstacles. Although general low bed trailers are widely used, the transportation is insecure due to the high bearing platform and complex loading. This foldable drop deck low bed trailer can adjust the height of the platform to fit the cargo.

Advantages:

• Sectional Structure
The lowboy trailer is designed with the concave beam. The coupling part of the frame is the platform. The rear wheel is arranged in the tailstock. The kingpin is inserted into the fifth wheel. The back of the gooseneck is connected with the main frame by the rotation shaft.

• Flexible Loading
The ground clearance still can be adjusted after loading the machinery. The trafficability can be improved by reducing or increasing the ground clearance when the semi-trailer confronts the obstacle over the cargo or runs on the bumpy road.
During transporting over-wide device, ladder-shaped supporters on both sides of the frame can be opened to increase the width of the platform. Moreover, devices can be fixed by rings nut welded on the outside of the frame.

Specifications:

Main Parameters
Dimension	11600×3000×3100 (mm)
Total Mass	35000(Kg)
Curb Weight	7500(Kg)
Rated Load	27500(Kg)
Running Gear
Axle Qty	13Tx2; FUWA
Landing Gear	JOST, 26T
Kingpin	JOST, 90#
Approach / Departure Angle	-/21(°)
Axle Load	-/18000
Tyre	8.25-20, 8.25R20, x8
Chassis
Chassis Manufacturer	DONGFENG
Wheel Mode	4X2
ABS	Yes
Front/Rear Suspension	-/1300(mm)
Wheelbase	8540+1310(mm)
Leaf Spring	-/4/4,-/10/10,-/8/8
Major Structure
Baseplate	3mm diamond plate
Flange Plate	Top: 8mm; Bottom: 8mm
Web Plate	12/14mm
Main Beam	I Beam
Accessories
Spare Tyre Rack	2
Tool Box	1

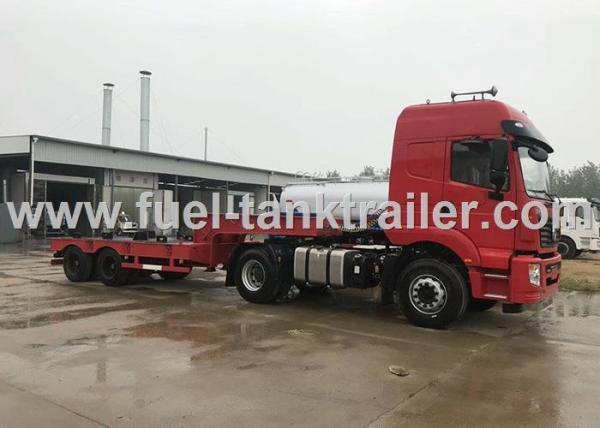

Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
