Multi Axle Steering Axle Heavy Duty Trailer Hydraulic Suspension low bed trailer

Description:

• Wide Application

The multi axle low loader trailer is named multi wheel heavy-duty semi-trailer. The low loader trailer can transport goods with different length, width. The large payload of the trailer is the total payload of several common semi-trailers. It not only can transport goods with various sizes but also reduces procurement costs for the single-size trailer.

• Adaptive Steering

The active adaptive steering technology is applied to reduce the tire wearing. The self-steering axle is vertically installed along the both sides of the frame. The 360 degree steering is achieved by hydraulic or mechanical drive.

Advantages:

• Hydraulic Suspension

The main function of the hydraulic suspension is to suit the rough road. With the assistance of hydraulic suspension, the trailer tyres could ajust automatically according to road condition. Besides, it also performs well on the basic function of suspension, like to absorb the trembling of the trailer, to support the trailer weight and payload.

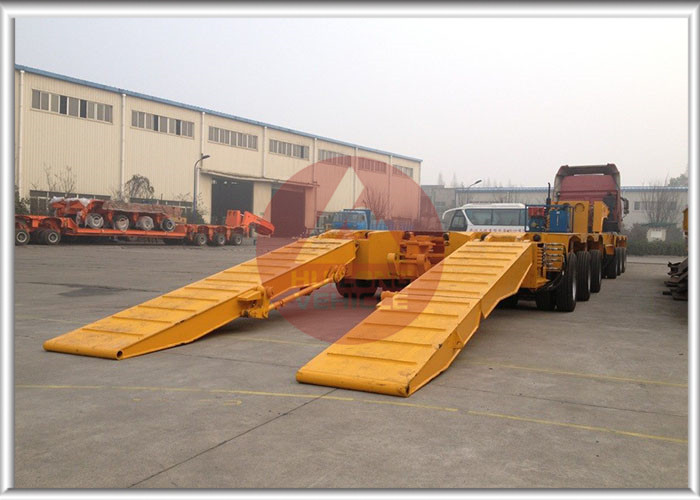

• Foldable Hydraulic Ramp

There are dual foldable hydraulic ramps on the rear end of the trailer. The balanced valve is built in the ramp and can offer the constant speed and stable operation. The ramp can be automatically collapsed or expanded by the foldable structure.

Specifications:

Function	Carry heavy goods
Main Beam	Upper 50mm; Down 60mm; Middle double 16mm
Overall Dimension (mm)	21000×2990×1080
Loading Weight(KG)	230000-250000
Axle Brand	11.5TON Axle JULIN Brand
Axle Number	20
Wheelbase(mm)	1550
Suspension System	Hydraulic suspension
Approach / Departure Angle	30/30
Wheel Rim	6.0-15
Tire Type and Quantity	Tire: 750R15 80pcs
Max Speed	8 km/h
Parts	Simple tripod and a set of tow bar
Brake System	Dual Line braking system, none ABS
Brake Air Chamber	10 double and 10 single chamber
Electrical System	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
