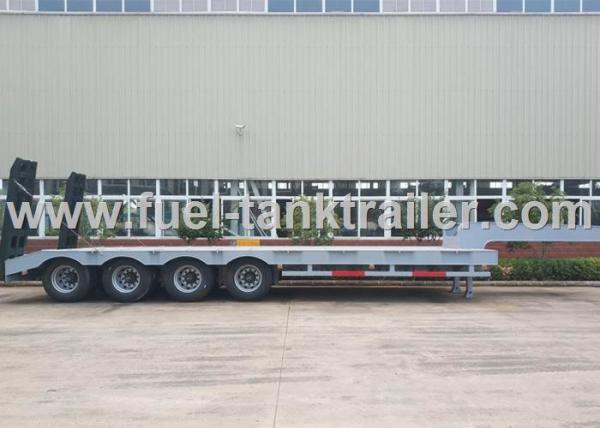

80T 4 Axle Low Bed Semi-Trailer

Description:

• Wide Application

There are a growing number of large construction projects in many fields. Thus, low bed semi-trailer with large capacity tonnage plays an important role in the transportation and installation of heavy equipments/components. Moreover, the hauling capacity and technical content update continuously.

Advantages:

• Trailer Loading
Drop ramps in the rear can enable the loading by pulling the front tyres of cargoes onto the deck. Furthermore, ramps made of high tensile steels are durable without deformation. Ribs are welded in the interior of ramps. Machineries with various treads can be easily loaded.

• Protective Devices

Components of the trailer are protected by guard bars equipped on the side and rear end of the trailer. Then, the damage to the trailer can be reduced. Little cars and passengers are also prevented from entering the trailer.

Specifications:

Dimension
Loading Weight	80T
Overall Dimension(mm)	12700×3000×3100,2015
Total Mass(Kg)	40000
Deck Length	8000mm
Deck Height	850-1200mm
Technical Data
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B; Welded by automatic submerged-arc processes
Fifth-wheel Load	16000
Fifth-wheel Height	1280
Payload(kg)	-/24000 (Tri-Axle)
Curb Weight(kg)	10000
Approach/Departure Angle(°)	-/16
Front/Rear Suspension(mm)	-/1200
Floor	3-6mm checkered steel plate
Ramp	Mechanical spring ramp
Axle	FUWA 13 Ton x4
Landing Gear	JOST brand Two-speed, manual operating
King Pin	JOST brand 2” bolt-in
Suspension	Non-liftable air suspension
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks
Spare Tire	One set of spare tire including a carrier
Wheel Rim	8.5-20, 8.25-22.5, 9.0-22.5
Tire	11.00-20, 8.25R15, 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5
Painting	Complete chassis sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint
Accessories	Tool box
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
