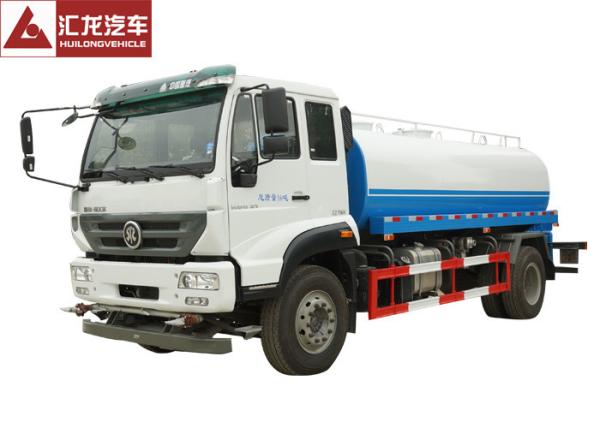

Flexible Sprinkling Water Tank Truck , Commercial Water Truck Wide Sprinkling Area

Description:

• Wide Application

SINOTRUK STR water bowser truck specializes in sprinkling trees, lawn, road, construction, high building etc. The front and rear sprinkling can sluice off dust in the street. The hydro pump is applied in landscaping and urgent fire control. Side sprinkling cleans guard bar and waters the green bag at the roadside.

• Flexible Sprinkling

The water bowser truck is not influenced by starting, stopping, shifting, and backing. The water pump can be controlled by a hand shank. The flow rate and pressure can be freely regulated without the limitation of gear and revolution of the engine.

• Tank Assembly

The large design capacity diminishes the water injection frequency. The tank is fixed on the main beam by the U shape screw bolt. The tack welding is applied to lessen the distortion of the tank.

Advantages:

• High Sprinkling Efficiency

The sprinkling angle is changeable. Both the spray gun and front sprinkling improve the efficiency.

• Wide Sprinkling Area

The rear sprinkling is designed with the in-line hole structure which requires less water and offers wider sprinkling.

• Integrated System

Each device is connected by steel pipes, high pressure rubber hoses and numerous valves. The integrated channel can perform better.

Specifications:

Main Dimension	8200x2500x3000mm
Tare Weight	7500KGS
Truck Chassis
Chassis Brand	SINOTRUK STR
Driving Mode	4X2
Cabin	Single row cabin, 2 seats, one sleeper, with AC
Max Driving Speed	90KM/H
Engine Horse Power	290hp
Gearbox	HW15710, 10 speed forward, 2 speed reverse
Front Axle	7Ton axle
Rear Axle	13Ton axle
Fuel Tank	300L aluminum fuel tank
Tyre	11R22.5, 6pcs
Fabrication Part
Tank Body	9000L water tank
Tank Parts	One manhole cover, one discharge valve
	One set of water sprinkler front
	One set of water sprinkler rear
	One water pump
	One water cannon rear
Configuration
