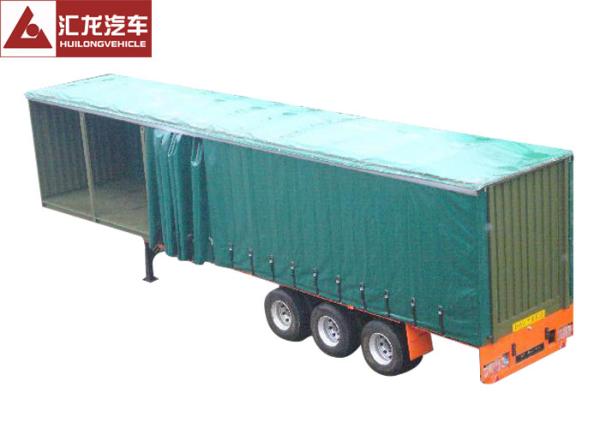

Leaf Spring Curtain Side Trailer , PVC Cover Soft Side Semi Trailer Submerged ARC Welding

Description:

• Main Application

The curtain sliding trailer is also named soft sliding tarpaulin trailer. The quality of our product meets European criteria. Nowadays, the labor cost is very high and labor forces are severely insufficient. Thus, the curtain sliding trailer is more popular in the market.

Advantages:

• PVC Cover

The tarpaulin is made of PVC materials applicable to all kinds of van. The light material can decrease the weight of the trailer and improve fuel economy. Moreover, PVC materials are waterproof, abrasion-resistant, and cut-resistant.

• Time-saving Curtain

The curtain can be easily opened and closed by the rail on its top. Both the front and rear sliding is available for the specific demand. If needed, an additional curtain can be installed on the top of the trailer. The carriage can be fully or partially opened and is convenient for mechanized operation.

Specifications:

Dimension
Overall Dimension	14000X2500X3850
Tare Weight	8600KGS
Running Gear
Chassis	Heavy duty and extra durability designed I beam by high tensile steel Q345B; Welded by automatic submerged arc processes; Top flange 14mm, width 140mm, middle flange 6mm; bottom flange 16mm, width 140mm.
Axle	3 axle, FUWA brand, 13Ton capacity
Suspension	Mechanical suspension
Spring	Leaf spring
King Pin	JOST kingpin, 2 inches
Landing Gear	JOST landing gear, manual operation, 2 speed
Wheel Rim	Steel wheel rim 9.0-22.5
Tire	Tubeless tire 12R22.5
Braking System	WABCO RE 6 relay valve; T30/30+T30 spring brake chamber; 40L air tanks
Painting	Complete chassis sand blasting to clean rust; 1 coat of anti-corrosive prime, 2 coats of final paint
Curtain Parts
Curtain Material	PVC curtains, fitted with buckles
Slide Rails	Aluminum alloy double slide rails

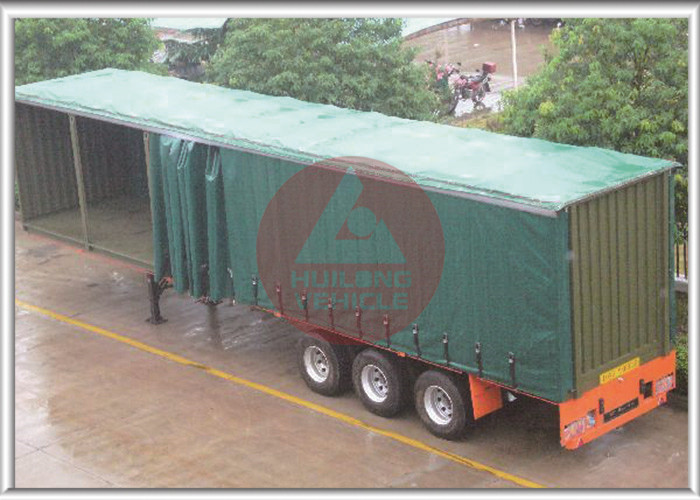

Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
