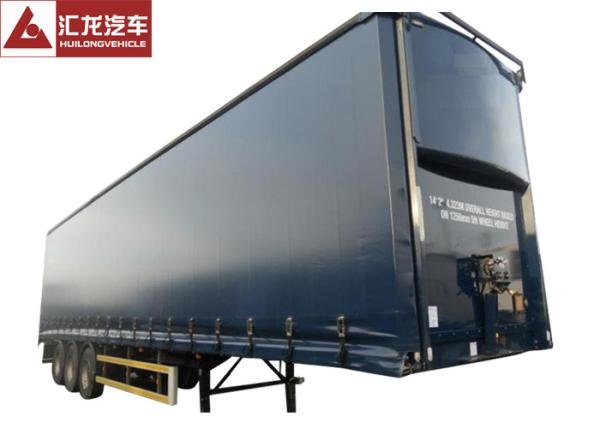

Aerodynamics Curtain Side Step Deck Trailer , Curtain Side Lorry With Light Curb Plate

Description:

•Core Application

The curtain side trailer is applicable for the urban logistics and supply of goods is stable. The trailer is the best choice for transporting bulk food, beverage and beer.

Advantages:

•Reasonable Design

Compared with stake trailers, columns and crossbeams can be rapidly disassembled by one person. Besides, the amount of columns and crossbeams depends on the demand of goods. It's very flexible to use the detachable structure.

•Excellent Aerodynamics

An air guide sleeve is equipped to effectively reduce the air resistance and fuel consumption when the curtain side trailer is driving at high speed. Usually, the air guide sleeve is installed on the top of the cabin of the tractor.

•Light Curb Plate

The curb plate is made of cord fabric rather than steel plate. Consequently, the weight of the trailer is decreased.

Specifications:

Dimension
Overall Dimension	14000X2500X3850
Tare Weight	8600KGS
Running Gear
Chassis	Heavy duty and extra durability designed I beam by high tensile steel Q345B; Welded by automatic submerged arc processes; Top flange 14mm, width 140mm, middle flange 6mm; bottom flange 16mm, width 140mm
Axle	3 axle, FUWA brand, 13Ton capacity
Suspension	Mechanical suspension
Spring	Leaf spring
King Pin	JOST kingpin, 2 inches
Landing Gear	JOST landing gear, manual operation, 2 speed
Wheel Rim	Steel wheel rim 9.0-22.5
Tire	Tubeless tire 12R22.5
Braking System	WABCO RE 6 relay valve; T30/30+T30 spring brake chamber; 40L air tanks
Painting	Complete chassis sand blasting to clean rust; 1 coat of anti-corrosive prime, 2 coats of final paint
Curtain Parts
Curtain Material	PVC curtains, fitted with buckles
Slide Rails	Aluminum alloy double slide rails
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.
