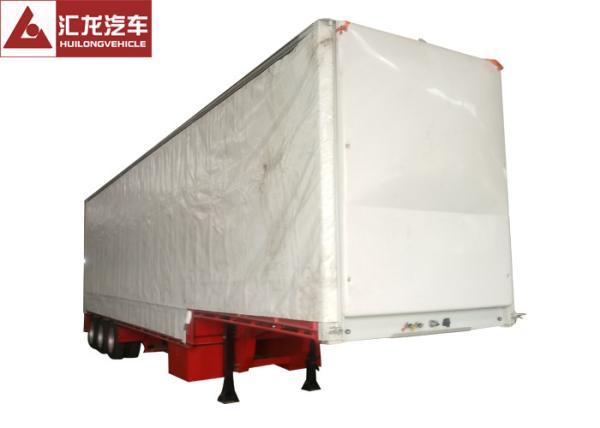

13 Ton PVC Cover Curtain Side Trailer Simple Operation With Air Guide Sleeve

Description:

• Main Application

Curtain side trailer is also called soft curtain trailer. It consists of chassis, column, crossbeam and curtain. The curtain of both sides can be quickly opened and closed. The column and crossbeam are easily dismountable.

Advantages:

• Simple Operation

Advantages of the curtain side trailer are the high convenience during handling operation. Common trucks can only load and unload on the narrow read end. After drawing the curtain aside, both sides and even the top of the trailer can be used for the cargo work. With the forklift and pallet, only 20 minutes are spent on the operation. In the end, the tarpaulin is unnecessary.

• Light Curtain

Since the curtain is lighter than common clad plates, the overall weight of the trailer is lighter than van. The lightweight greatly increases the load of the trailer.

Specifications:

Dimension
Overall Dimension	14000X2500X3850
Tare Weight	8600KGS
Running Gear
Chassis	Heavy duty and extra durability designed I beam by high tensile steel Q345B; Welded by automatic submerged arc processes; Top flange 14mm, width 140mm, middle flange 6mm; bottom flange 16mm, width 140mm.
Axle	3 axle, FUWA brand, 13Ton capacity
Suspension	Air suspension with air bag
King Pin	JOST kingpin, 2 inches
Landing Gear	JOST landing gear, manual operation, 2 speed
Wheel Rim	Steel wheel rim 9.0-22.5
Tire	Tubeless tire 12R22.5
Braking System	WABCO RE 6 relay valve; T30/30+T30 spring brake chamber; 40L air tanks
Painting	Complete chassis sand blasting to clean rust; 1 coat of anti-corrosive prime, 2 coats of final paint
Curtain Parts
Curtain Material	PVC curtains, fitted with buckles
Slide Rails	Aluminum alloy double slide rails
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.
