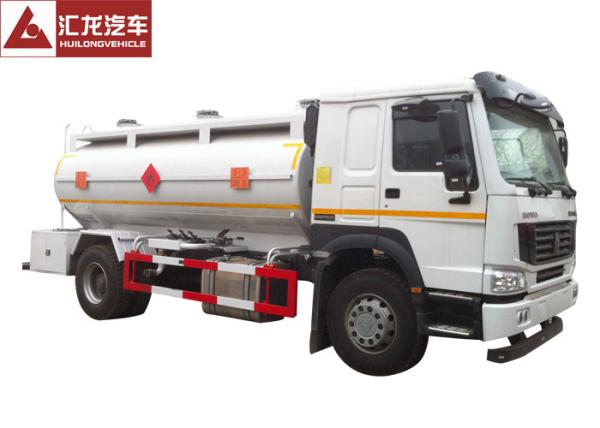

Rigid Gas Delivery Truck , 4x2 Petrol Tanker Truck Rotproof Hose
Turbo Charging
Description:
• Main Usage
The 15000L fuel tank truck can pump the oil absorbed from other
containers into its own tank and can also refuel other vehicles or
vessels with its own oil. A diversity of liquid materials can be
transported, covering washing fluid, lubricating oil, water, liquid
food, concrete admixtures, water-reducing admixture etc.
• Continuously Variable Transmission
Change transmission ratio, increase torsional moment and rotational
speed of driving wheel to suit variable driving conditions;
The vehicle can reverse if the engine rotates in the fixed
direction;
Stop the power transmission with the neutral gear, then the engine
can be started and shifted. The gearbox can successfully shift gear
or transfer power.
Advantages:
• Tank Technology
The cap of the tank is cut off with CNC plasma cutting machine and
then spun by the spin flanging machine. The tank is automatically
welded by gas shielded welding. The length of the tank is welded by
integral longitudinal beam welding. The welding stress and rust are
removed by shot peening.
• Rotproof Hose
The special hose has small tolerance of outside diameter. It is oil
and heat resistant. The hose is soft, light, and durable. The
minimum explosive compaction is 4 times of the working pressure.
Specifications:
| Main Dimension | 9200x2500x3000mm |
| Tare Weight | 8500KGS |
| Truck Chassis |
| Chassis Brand | SINOTRUK HOWO |
| Driving Mode | 4x2 |
| Cabin | HW76 |
| Max Driving Speed | 90km/h |
| Engine Horse Power | 290HP, WD615 series engine, 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Gearbox | HW19710, 10 speed forward, 2 speed reverse |
| Front Axle | HF7 |
| Rear Axle | HW16 |
| Fuel Tank | 300L, aluminum fuel tank |
| Tyre | 12R22.5 tubeless tyre, 13pcs |
| Fabrication Part |
| Tank Body | 15000L, by carbon steel Q235 |
| Tank Parts | Aluminum alloy manhole cover Aluminum alloy discharge valve, European type Aluminum alloy bottom valve |
