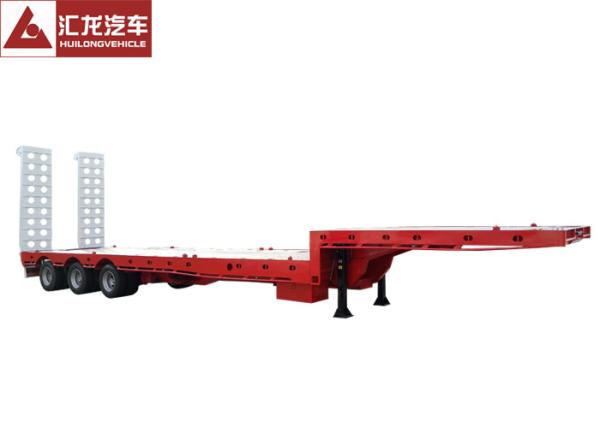

Integrative Heavy Duty Gooseneck Trailer Modern Industrial Design Strengthened Vertical Beam

Description:

• Key Application

The drop deck low bed trailer can transport a great deal of mechanical equipments covering large devices, construction machinery (e.g. excavator, bulldozer, loader, and crane), power system etc. Its 3 axles allows for the 60 tons of cargoes.

• Integrative Structure

Fences are not installed on the cargo platform. Beam-through and drop deck structures are applied to the frame and the longitudinal beam respectively. The crossbeam and the longitudinal beam are integrally welded to support the load and reduce the wallop.

Advantages:

• Low Chassis

The low bed trailer has a low chassis for stability and safety of driving. Besides, the drop deck trailer can transport super-heavy cargoes and drive through obstacles with limited height.

• Modern Industrial Design

The low bed trailer is designed with advanced 3D softwares. The bearing surface of the frame can meet the transportation of miscellaneous special goods in line with customers' requests.

• Strengthened Vertical Beam

The submerged arc welding is applied in the vertical beam to improve the welding quality. The ladder and I-beam structure improve the stiffness.

Specifications:

Tare Weight	About 8 Ton
Max Loading Capacity	60Ton
Wheel Base	1310 (mm)
Tyre Specifications	10.00R20 / 12
Tyre Amount	12 tyres
Axle	3 Axles
Axle-load	13 Tonnage
King Pin	2’ & 3.5’changeable
Landing Leg	28ton with 80Tons static capacity
Pieces of Leaf-Spring	10pcs
Suspension	Heavy Duty Leaf Spring
Dimensions	12500x2500x1500 (mm)
Material	Q345B manganese plates; automatic submerged arc welded; Height 500mm, through cross beams Q235; Floor, 3mm management plate
Brake System	Dual line braking system with automatic air chambers
Brake Air Chamber	Four double and two single chamber
Electrical Sys	24V, 7 core socket, lights according to European standards
Color	Any color will be available
Accessory	One tooling box with a set of standard trailer tool
Spare Tire Carrier	1 set
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.
