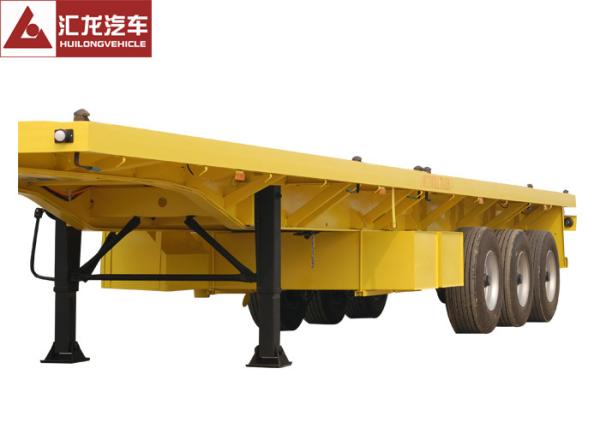

Air Suspension Cargo Container Trailer Yellow Color Dynamic Balance With Landing Gear

Description:

• Wide Application

Flatbed container semi-trailers usually transport most of the goods that can be packed in containers. Heavy duty truck, rail vehicles, mining machinery, forestry machinery, construction machinery and other heavy-duty cargoes can be transported as well.

• Safety and Efficiency

The container trailer is generally designed with concave beam (or # shape) frame. The lower the centre of gravity is, the better the security is. The ability for transporting overhigh cargoes and passing the barrier on the top is stronger.

Advantages:

• Fast Loading and Unloading

The container can be quickly loaded and unloaded through using a container transport trailer. The goods also can be quickly transferred from one vehicle to another.

• Equipped with Air Suspension

This semi-trailer is equipped with an air suspension which can improve comfort of driving. It is suitable for medium and long distance transportation, and transporting vulnerable and fragile goods.

• Dynamic Balance

A mass balancer is equipped between front and rear leaf spring, which can make the deflection equally change and balance evenly the force of front and rear axle.

Specifications:

DIMENSIONS
Tare Weight	7700KGS	Payload	45000KGS
Overall Length	12400mm	Overall Width	2480mm
Technical Data
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345; Welded by automatic Submerged-Arc processes; Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm
Axle	3 axles
	Brand name: BPW, L1 or FUWA-optional upon choice
Suspension	Air suspension
Spring	Leaf spring or air bag
King Pin	JOST brand 2” Bolt-in King Pin
Landing Gear	JOST brand Two-speed; manual operating; heavy duty landing gear
Wheel Rim	8.5-20 ,9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim
Twist Lock	12 no. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container
Tyre	11.00R20 , 12.00R20, 11R22.5,12R22.5,315/80R22.5
Spare Tyre	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks
Painting	Complete Chassis sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint
Accessories	One standard tool box
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.
