3 Axles Low Boy Trailer Low Loader Trailer Construction Equipment Transport

Description:

• Wide Application

The low bed trailer is the ultra-low multifunctional transit trailer and consists of the cargo platform, rear ramp and landing leg etc. The low bed effectively reduces the height of the bearing surface so indecomposable industrial equipments like machine tools and transformer can be transported.

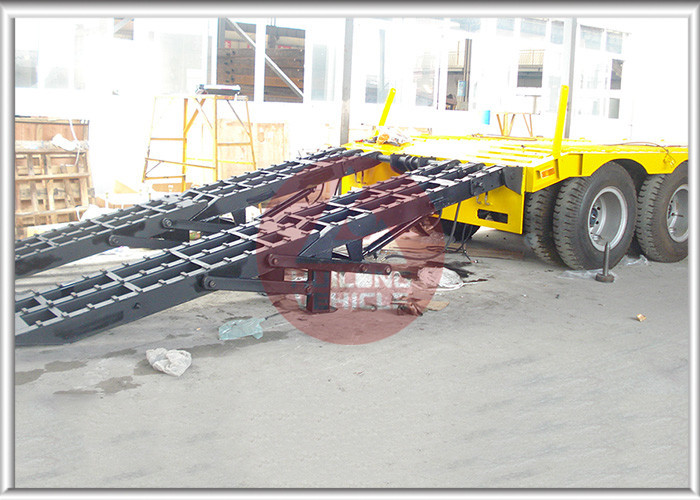

• Hydraulic Ramp

Dual hydraulic ramps are installed to facilitate the cargo work. The ramp is made up of two adjacent segments. The hydraulic cylinder is equipped with the rear end of the trailer. The piston rod of the hydraulic cylinder is connected with the middle of the second segment. There is a brace rod between the end of the first segment and the rear end of the frame. A roll is installed in the front of the first segment. The length of the ramp is increased by two adjacent segments. The movement of the ramp is controlled by the extendable piston rod. Thus, the handling operation can be supported by the flexible ramp.

Advantages:

• Landing Legs

There are two folded landing legs in the rear end of the trailer. When loading the equipment, they can bear the stress. The head of the tractor won’t rear up with four pressure points.

• Equivalent Stress

On the bumpy road, all tyres can synchronously touch the ground. The stress distribution of the frame and tyres is equivalent.

Specifications:

Tare Weight	About 8 Ton
Max Loading Capacity	60Ton
Wheel Base	1310 (mm)
Tyre Specifications	10.00R20 / 12
Tyre	12 tyres
Axle	3 Axles
Axle-load	13 Tonnage
King Pin	2’ & 3.5’ changeable
Landing Leg	28ton with 80Tons static capacity
Pieces of Leaf-Spring	10pcs
Suspension	Heavy Duty Leaf Spring
Dimensions	12500x2500x1500 (mm)
Material	Q345B manganese plates; automatic submerged arc welded; Height 500mm, through cross beams Q235; Floor, 3mm management plate
Brake System	Dual line braking system with automatic air chambers
