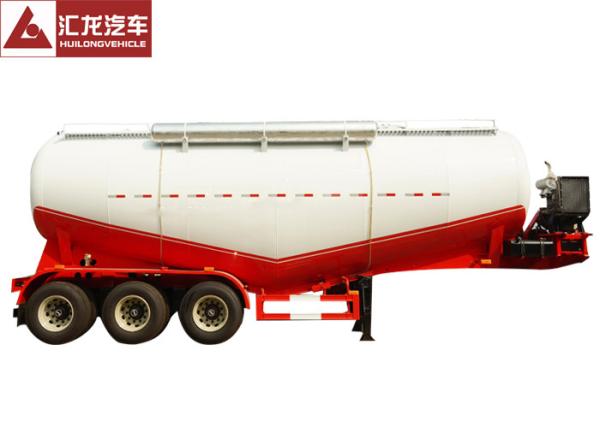

Durable Dry Bulk Trailer Air Compressor Equipped Low Transportation
Costs
Description:
• Key Application
Dry bulk tank trailer refers to the trailer carrying bulk powder
materials. It transports powdered materials such as calcium carbide
powder, talcum powder, rice and grain etc. It consists of a
chassis, air compressors, power take-offs, tanks, valves and pipes.
• Durability
The tank body is durable for the adoption of 5 mm Q235. The trailer
has three axes and the tank body is V-shaped. Equipped with diesel
engine and air compressor, the trailer can efficiently unload dry
powder. The powder tank include a cylinder body, upper feed inlet,
a fluidized bed, a discharge pipe, an air intake pipe and other
accessories.
Advantages:
• High Working Efficiency
As the tank is a container for material, mechanical loading and
unloading can be adopted. Hence, time invested on loading and
unloading can be greatly shortened. Besides, manual job for
packaging and cargo handling is avoidable.
• Transportation Safety
Because dry powder is transported in a sealed container, it will
not leak, and even toxic substances will not pose a threat to the
environment. Therefore, accidents do not easily occur during
transportation.
• Low Transportation Costs
Tank trucks reduce transportation costs by no packing and less
physical work.
Specifications:
| Overall Dimension(L x W x H)mm | 11900 x 2500 x 3900 |
| Tare Weight (KG) | 10500 |
| Loading Weight( KG) | 60000kg |
| Tank Capacity( CBM ) | 45cbm |
| Medium | Bulk cement and flour |
| Tank Body Thickness(mm) | carbon steel | Q235 | 5mm steel |
| End Plate | carbon steel | Q235 | 6mm steel |
| Air Compressor | 14m3 Bohai brand |
| Engine | Weichai 4105 Engine |
| Axle Brand | FUWA 16ton axle |
| Axle Number | 3 |
| Manhole Covers | 500mm manhole cover; 3 sets with 3 breather valve. |
| Discharge Valve | 4’ change into 3’ |
| Discharge Pipe | 4’ seamless steel tube |
| Discharge Valve Box | totally-enclosed |
| Spill Discharges | 1 at the rear |
| Bottom Valve | 1 set |
