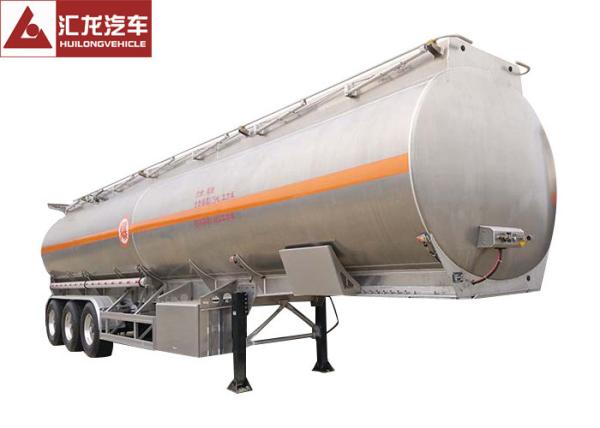

Round Shape Fuel Truck Trailer Aluminum Alloy Vessel Large Capacity

Description:

• Main Application

The fuel tank trailer is suitable for transporting and delivering lightweight fuel, oil, and other types of non-corrosive liquid. Our factory produce different types carbon steel fuel tank trailer, aluminum alloy fuel tank trailer, stainless steel tank trailer and other types of chemical tank trailer. Due to the increasingly obvious advantages of aluminum alloy tanks, carbon steel fuel tanks have gradually been replaced by aluminum alloy tankers in China and abroad.

• Professional Instrument

The aluminum alloy fuel trailer is equipped with a full set of loading and unloading equipment. The fuel tank can be divided into a few independent compartments to transport different oils. The fuel tankers have different shapes with different advantages. The round shape tank has an even impact from the loading liquid. The oval shape tank has the lowest gravity. The square shape tank has big volume. We design the tank in different shape to suit the customer’s specific need.

• Strength and Stability

Multiple anti-wave plates are designed and welded in the tank body to reduce the impact from the wave and improve the strength of the tank. With proper design, the tank gravity is as lower as possible to give a better stability of the tank trailer.

Advantages:

• Lighter Tank Body

At the same volume, aluminum alloy tanks are approximately 40% lighter than carbon steel. It is difficult to roll over with the low center of gravity.

• Anti-corrosion

The outer surface of the aluminum alloy has a dense oxide layer protective film which can delay rusting and maintain the quality of the oil. It is not necessary to spray anti-corrosion coating further.

• Large Capacity

Aluminum alloy products are light in weight, so they can be loaded with more fuel and have a very high economic efficiency.

Specifications:

Overall Size (mm)	12500x2500x3800
Capacity	30,000L~45,000L
Tank Body	Aluminum alloy
Tank Shape	Round Shape
Axle	3
Suspension	Mechanical suspension or air suspension
Leaf Spring	Leaf spring or air bag
Manhole Cover	500mm manhole cover, 2 sets with 2 breather valve
Discharge Valve	2 set of φ100mm discharge valve
Discharge Pipe	4” rubber hose, 2pcs, 6m long
Bottom Valve	2 sets of bottom valve
Compartment	2 compartments
Tire	11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Tire optional
Wheel Rim	8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional upon choice
Kingpin	2’’/3.5’’ bolt-in king pin
Landing Gear	JOST brand two-speed, manual operating, heavy duty landing gear
Braking System	WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks
Accessories	One standard tool box
Gallery

Company Profile:

Hubei Huilong Special Vehicle Co.,Ltd is a special purpose vehicle manufacturer located in Suizhou - Capital of Special Vehicles in China.

Our products are produced with the greatest attention on the operation, road safety and environmental protection. Lightweight design on structures and materials is applied for our vehicles. Saving energy is also considered. Emission standards (Euro 3 - 5) are strictly followed. Due to the advanced technology and high added value, our products are popular with the market.

Huilong factory designs and produces a wide range of special vehicles, covering tank trailer, LPG trailer, flatbed trailer, lowbed trailer, self-propelled modular transporter (SPMT), tipper trailer, car carrier trailer, caravan trailer, tank truck, LPG truck, tow truck, fire truck, ambulance, asphalt truck, food truck, tractor etc.

Marketing:

Our company has developed a global marketing network. Our products are exported to countries and areas all over the world, like Africa, South East Asia, Middle East and Australia.
