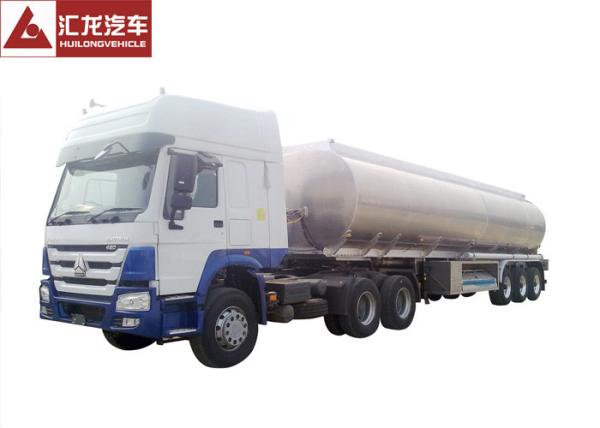

Elliptical Vessel Shape Fuel Tanker Semi Trailer 7500kgs Tare
Weight High Safety
Description:
• Key Application
The aluminum fuel tank trailer is also a kind of fuel tank trailer,
but the tanker and chassis are made by aluminum alloy, not the
carbon steel. The aluminum alloy tank trailer is 1/3 less in weight
compared with the traditional carbon steel fuel tank trailer.
The application is the same with traditional fuel tank trailers to
transport the fuel, oil, diesel, lubricating oil, etc. Due to the
less weight and more environmental friendly, it is more and more
popular both in China and in the world.
• Multi-Purpose Storage
Our company is a professional manufacturer of aluminum alloy tank
trailers. This trailer is made of aluminum alloy, and this aluminum
alloy tank trailer has 7 separated compartments in the tank. It can
store 1-7 different oil products. This trailer comes with a
tractor, we also provide different brands of tractors for your
optional.
Advantages:
• Excellent Quality and Reasonable Price
Our company has a team specializing in the production of aluminum
fuel trailers. We have experienced and skilled technicians and
workers. So the quality of our product is reliable and the price is
reasonable.
• More Safety
Aluminum fuel trailer is easy to brake because it has a low center
of gravity. The energy caused by the collision can be reduced and
the shape can be maintained.
• Cost-effective Transportation
By reducing the weight of the body and increasing the payload,
transporting the same quantity of goods needs fewer vehicles.
Specifications:
| Tank Body |
| Shape | Elliptical Shape |
| Dimension | 12000mm*2490mm*3880mm |
| Tare Weight | About 7500KGS |
| Total Volume | 45000L |
| Tanker Body Material | 5mm (Aluminum alloy 5083) |
| End Plate | 7.2mm (Aluminum alloy 5083) |
| Manhole Cover | Aluminum alloy, 500mm |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | 7 |
| Discharging Pipe | 4" rubber hose, 2 pcs, 6m/each inch |
| Cat Walk | With (Common model or special design) |
| Chassis |
| Main Beam | Welding Design or Special design I beam; Connected by bolts and nuts; Aluminum alloy chassis |
| Axle | 3 axles |
| Landing Gear | JOST(D200T) or CHINA BRAND 28T |
| King pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Air Suspension |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand) 2 pieces of 45L air
tanks |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20; Brand can be optional |
| Configuration |
 |
