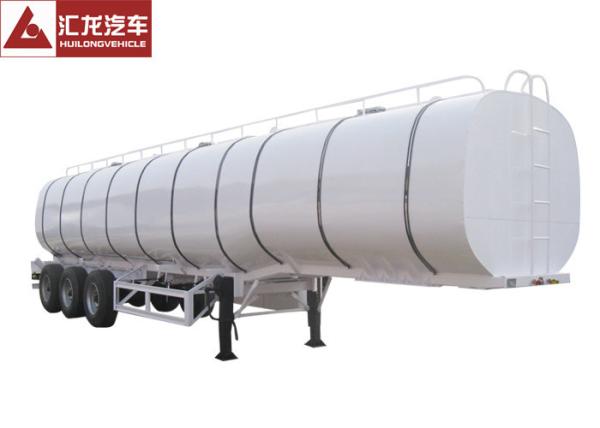

Double Layer Chemical Tanker Truck Thermal Insulation 3 Axle 40000l
Net Capacity
Description:
• Main Application
The double layer thermal insulation tank trailer made of carbon
steel is qualified for transporting a variety of non-corrosive
chemical liquid, since the inner and outer of the tank is painted
with anti-corrosion coatings. Usually, the tank is fixed on the
chassis by the steel belt.
Advantages:
• Trailer Protection
The side and rear protective devices are made by Q235A. Side
protective devices are coupled with the trailer by screw bolts,
while the coupling between rear protective devices and the frame is
completed by welding.
• Insulation Material
50mm fiber glass or polyurethane is used for heat insulating.
Fiber glass is the inorganic non-metallic material and has many
advantages like superior insulativity, heat resistance,
corrosion-proof, high compressive strength.
Radical groups in the polyurethane macromolecule are polar groups.
Moreover, polyether or polyester flexible chain is involved in the
macromolecule. Polyurethane has the following features:
1) high compressive strength, oxidation stability
2) high flexibility, elastic resilience
3) oil resistance, solvent resistance, water resistance, fire
resistance
Specifications:
| Dimension |
| Overall Dimension | 12800x2500x3650mm |
| Tare Weight | 12600KGS |
| Tank |
| Shape | Monoblock shape tank |
| Total Volume | 40000L |
| Tank Body Material | Carbon steel 5mm |
| Tank End Plate | Carbon steel 6mm |
| Compartment | Single compartment |
| Insulation Material and Thickness | Fiber glass / polyurethane, 50mm |
| Outside Sheet | 1.2mm steel sheet |
| Manhole Cover | Aluminum alloy API manhole cover 500mm, 2 sets with 2 breath valve |
| Bottom Valve | 1 set aluminum pneumatic bottom valve |
| Discharging Valve | 2 sets 100mm discharging valves |
| Discharging Pipe | 4” rubber hose, 2 pcs, 6m long |
| Heating System | Optional |
| Trailer Chassis |
| Main Beam | Special design I beam |
| Axle | BPW axle |
| Landing Gear | JOST landing gear |
| Kingpin | JOST kingpin 2 inches |
| Suspension | Mechanical suspension |
| Braking System | T30/30 air chamber, WABCO relay valve |
| Tire | 12R22.5 |
| Wheel Rim | 9.0-22.5 |
| Accessories | Tool box, spare tire carrier |

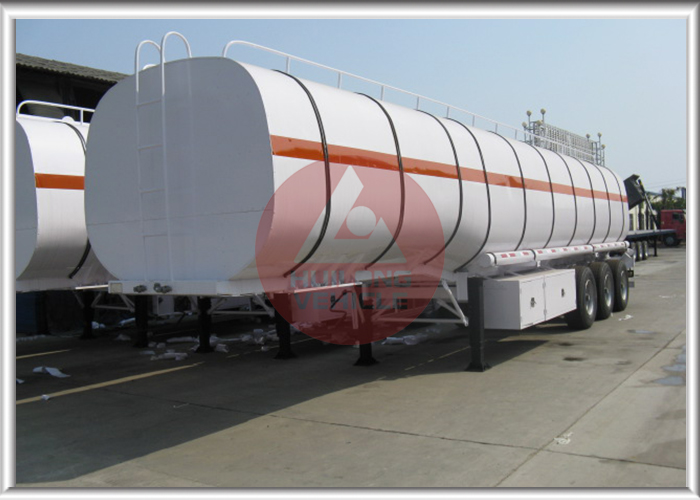

| Gallery |
 |
