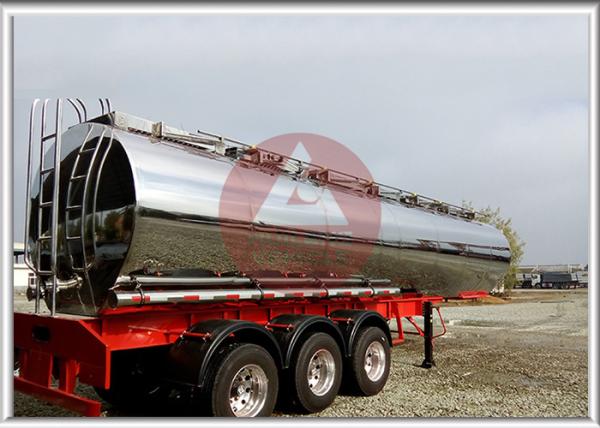

316L Milk Transport Truck , Stainless Steel Water Tank Trailer With Pump System

Description:

• Core Application

Fresh milk tank trailer is the non-dangerous goods vehicle and facilitates the milk transportation between the pasture and the dairy plant. The tank of the trailer ideally matches with the characteristics of the milk: liquid, precipitation, deterioration. More importantly, the chemical reaction with the milk is preventive. The valid volume is 316L.

• Automatic Pumping and Cleaning

The milk trailer is equipped with pump and washing system, which can clean the tank automatically. The efficiency of manual washing is improved.

Advantages:

• Flexible Compartment

One or more compartments can be designed in accordance with actual demand.

• Dust Prevention

The reliable breather valve can prevent the dust and decrease material loss.

• Alloy Steel Axle

The axle produced by high-quality alloy steel has a high bending resistance and strong capacity.

• Food Hygiene

The inner liner made of stainless steel achieves the highest hygienic standard. The automatic welding and refined polishing make the interior evener and firmer.

• Built-in Anti-Wave Board

The anti-wave plate is designed in arc structure. The R50 arc can optimize the transition fillet and can keep the tank clean and tidy without any omission.

Specifications:

Tare Weight	8000kg--14000kg
Volume	316L
Axle Weight Load	13T/16T
Axle Brand	FUWA/BPW/others
Suspension	Common mechanical or Air Suspension
King Pin	JOST 3.5" traction pin
Dimensions	10500-13000mm*2500mm*3800mm
Support Legs	JOST Single 28T heavy duty
Wheel Rim	9.0-20
Wheelbase	1310mm
Steel Spring	10 pieces per axle
Ladder	Mechanical ladder
Accessories	1 Set standard tool box
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc.
Painting	1 coat of anticorrosive prime, twice coats of final paint
Tire Spec.	12R22.5 Vacuum tire
Number of Tire	8/12 pieces
Spare Tire Carriers	2 pieces
Manhole Cover	500mm manhole cover; 2 sets with 2 breather valve
Discharge Valve & Pipe	4 inch disc valve & 4 inch seamless steel tube
Brake Chamber	4 big chamber
Brake System	Dual Line Brake system
Configuration
