Anti Static Liquid Tank Trailers Low Residual Liquid Germ Free Tank​

Description:

• Main Application

The milk tank trailer is the important supported vehicle in the transportation chain of dairy products. It is applicable to the manual milking meadow, milk depot and milk factory. The trailer has distinctive characteristics as follows: well-knit structure, high automation, less land occupation and energy-saving.

• Large Tank Volume

The milk tank trailer has 3 axles and the load capacity is up to 30tons. The tank body was made of stainless steel plate. The tank also has insulation and cooling functions.

Advantages:

• Tank Structure

The inner pot of the tank is made of SUS304 and is greatly polished. The CIP(Cleaning In Place) system is installed in each compartment.

The middle layer of the tank is thermal-insulating, which can make the temperature vary within 1℃ for 24 hours. The insulating material is 80mm polyurethane.

The surface of the tank is made of 2mm 304L stainless steel. The stainless steel skin looks shining.

• Loading / Unloading Components

The independent discharge and charge valve is equipped with each compartment. Stainless steel pump can be installed as well.

• Temperature Control

Refrigerator and stone wool are available for adjusting temperature.

Specifications:

Tare Weight	8000kg--14000kg
Loading Capacity	30T
Axle Weight Load	13T/16T
Axle Number	3
Axle Brand	FUWA/BPW/others
Suspension	Common mechanical or air suspension
King Pin	JOST 3.5" traction pin
Dimensions	10500-13000mm*2500mm*3800mm
Support Legs	JOST Single 28T heavy duty
Wheel Rim	9.0-20
Wheelbase	1310mm
Steel Spring	10 pieces per axle
Ladder	Mechanical ladder
Accessories	1 Set standard tool box
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc.
Painting	1 coat of anticorrosive prime, twice coats of final paint
Tire Spec.	12R22.5 Vacuum tire
Number of Tire	8/12 pieces
Spare Tire Carriers	2 pieces
Manhole Cover	500mm manhole cover; 2 sets with 2 breather valve
Discharge Valve & Pipe	4 inch disc valve & 4inch seamless steel tube
Brake Chamber	4 big chamber
Brake System	Dual Line Brake system

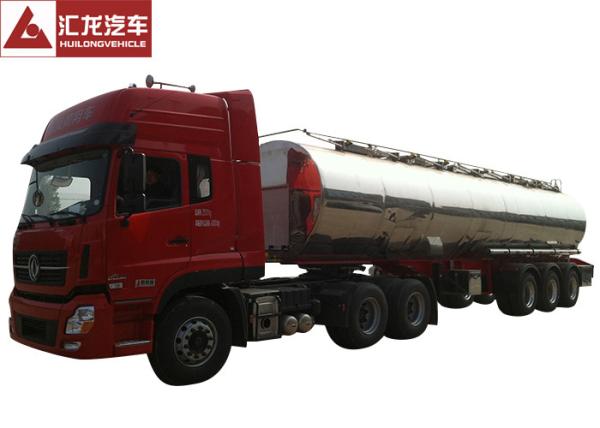

Gallery
