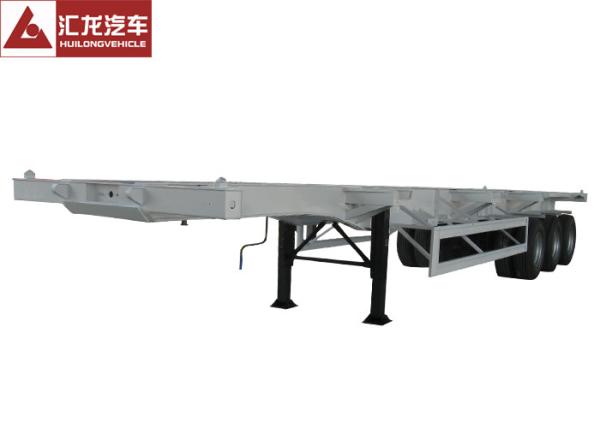

Low Abrasion Shipping Container Truck Trailer Abrasive Blasting
Cleaning High Reusability
Description:
• Integral Design
Skeletal container trailer frame is welded by longitudinal beams,
cross beams, front and rear beams. An integral long beam is
arranged at the intermediate container twist locks to improve the
carrying capacity of the container locking device. Skeleton
semi-trailer can load one or two containers with different
dimensions (20/40 feet).
• 3 Axles Layout
The skeletal container trailer is equipped with 3 axles, which fits
for FR layout and increases the capacity. Hence, container truck is
qualified for loading 40T goods, light in weight and the
maintenance is not complex.
Advantages:
• High Reusability
Container trailer is used in the logistics system covering ships,
ports, routes, highways, transit stations, bridges, tunnels, and
multimodal transport etc. The whole frame is assembled and welded
on the special positioning platform. Thus, the reusability is high.
• Rapid Handling Operation
Loading can be completed in the storehouse of the consigner and
goods can be unloaded at the arrival of warehouse of the consignee.
It is unrequired to move the goods out of the container during the
shifting of vehicles or ships.
• Miscellaneous Options
Gooseneck/skeletal/flatbed/low flatbed container trailer can be
produced as per customers' requests.
• Reliable Material
Steels come from large steel mill and key purchased components are
selected with well-known brand.
Specifications:
| DIMENSIONS |
| Tare Weight | 6000KGS | Payload | 40000KGS |
| Overall Length | 12400mm | Overall Width | 2480mm |
| Technical Data |
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345; Welded by automatic Submerged- Arc processes; Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm |
| Axle | 3 axles |
| Brand name: BPW, L1 or FUWA |
| Suspension | Mechanical suspension or air suspension |
| Spring | Leaf spring or air bag |
| King Pin | JOST brand 2” Bolt-in King Pin |
| Landing Gear | JOST brand Two-speed; manual operating; heavy duty landing gear |
| Wheel Rim | 8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim |
| Twist Lock | 12 no. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container |
| Tyre | 11.00R20 , 12.00R20, 11R22.5,12R22.5,315/80R22.5 |
| Spare Tyre | One set of spare tire including a carrier |
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks |
| Painting | Complete Chassis sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint |
| Accessories | One standard tool box |
| Configuration |
 |
